Workshop compressor 230 V / 10 bar / 50 l tank
Compact workshop compressor with 10 bar operating pressure, 50 liter tank and 230 V electrical connection.
Workshop compressor 230 V / 10 bar / 50 l tank

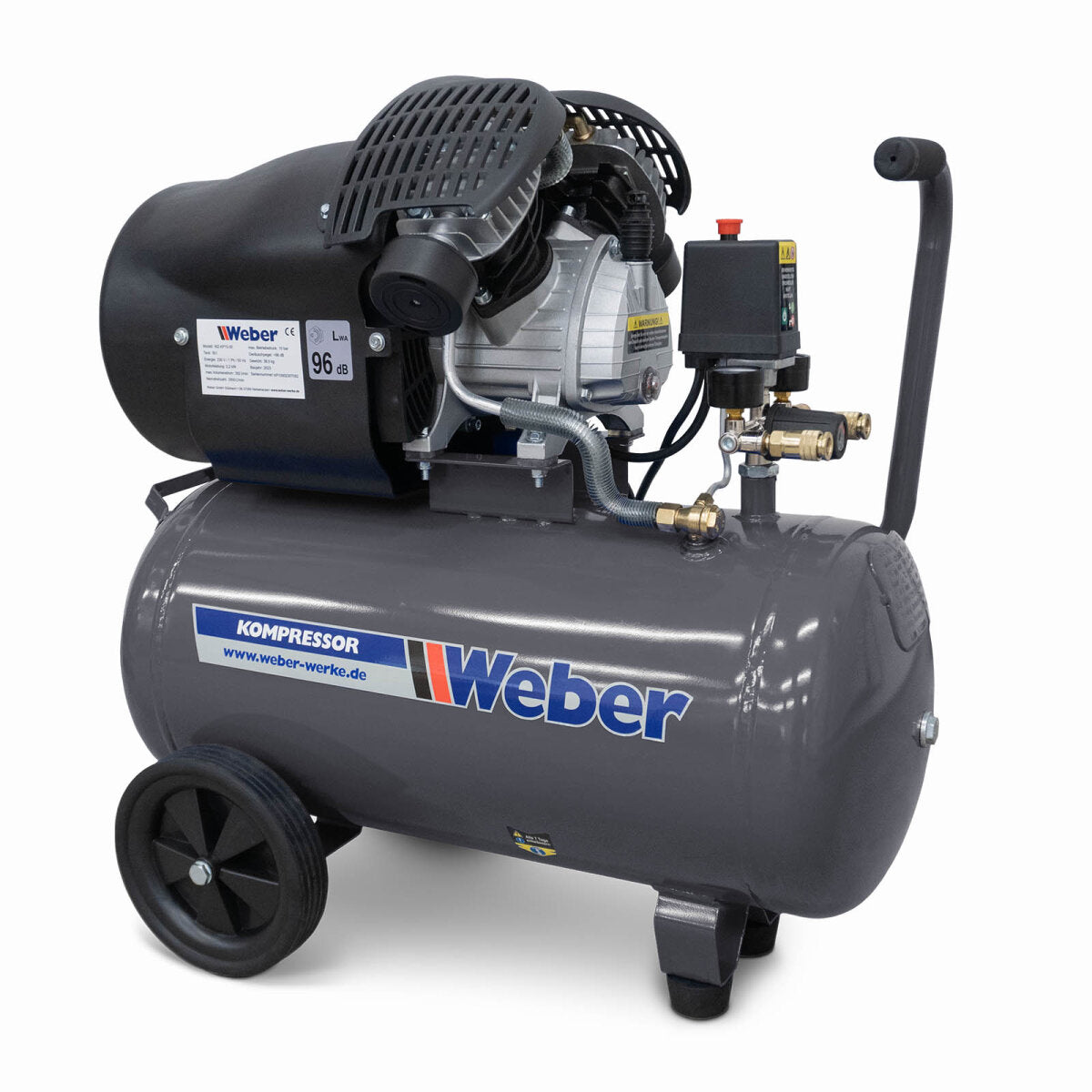

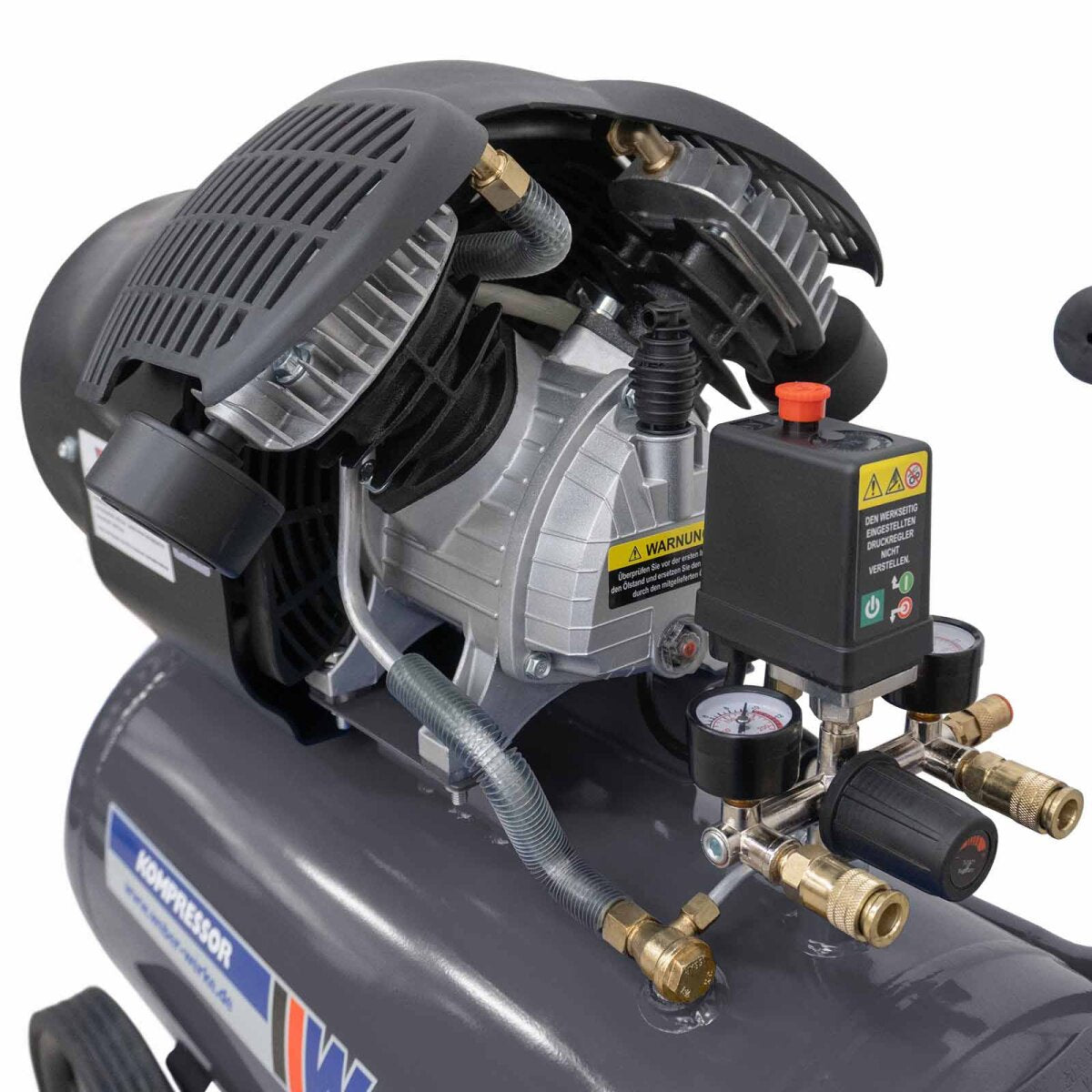

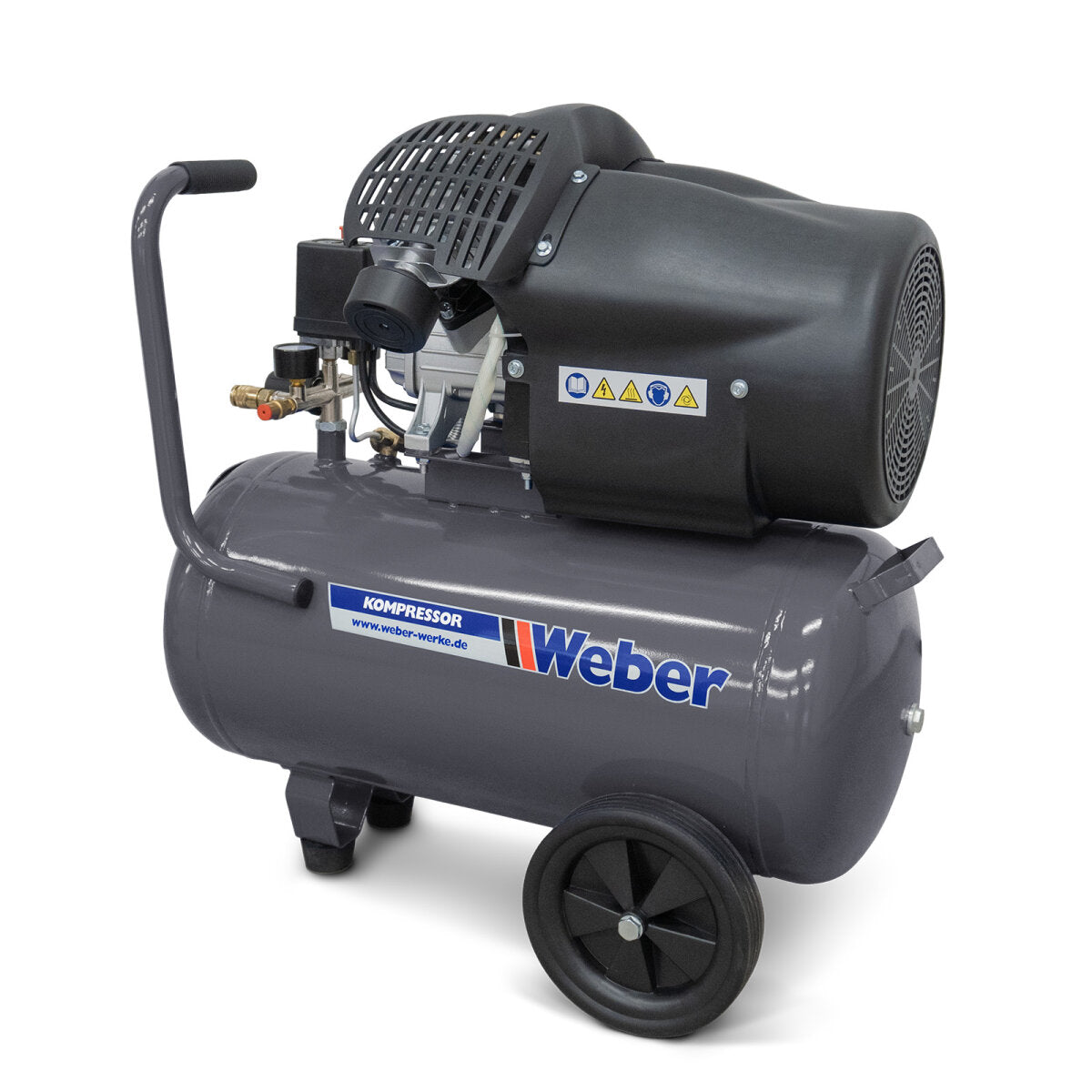

The compact Weber air compressor with a 10 bar operating pressure and a 50-liter tank is perfect for use in the workshop, garage, or around the home. With its oil-lubricated, direct-drive, 2-cylinder unit and high working pressure, it ensures maximum performance and reliability despite its space-saving design. Thanks to its sturdy plastic wheels and convenient carrying handle, the air compressor is mobile and therefore easy to use. The pressure switch and pressure regulator allow for simple and precise adjustment of the working pressure, simplifying operation. The integrated pressure gauge enables quick and easy pressure readings. The quick-release coupling makes it easy to connect all kinds of pneumatic tools, while a safety valve and condensate drain plug on the tank provide the necessary safety.
- direct-drive twin-cylinder compressor
- powerful and robust
- high work pressure
- Mobile thanks to stable wheels
- Ready for connection, equipped with CE safety plug

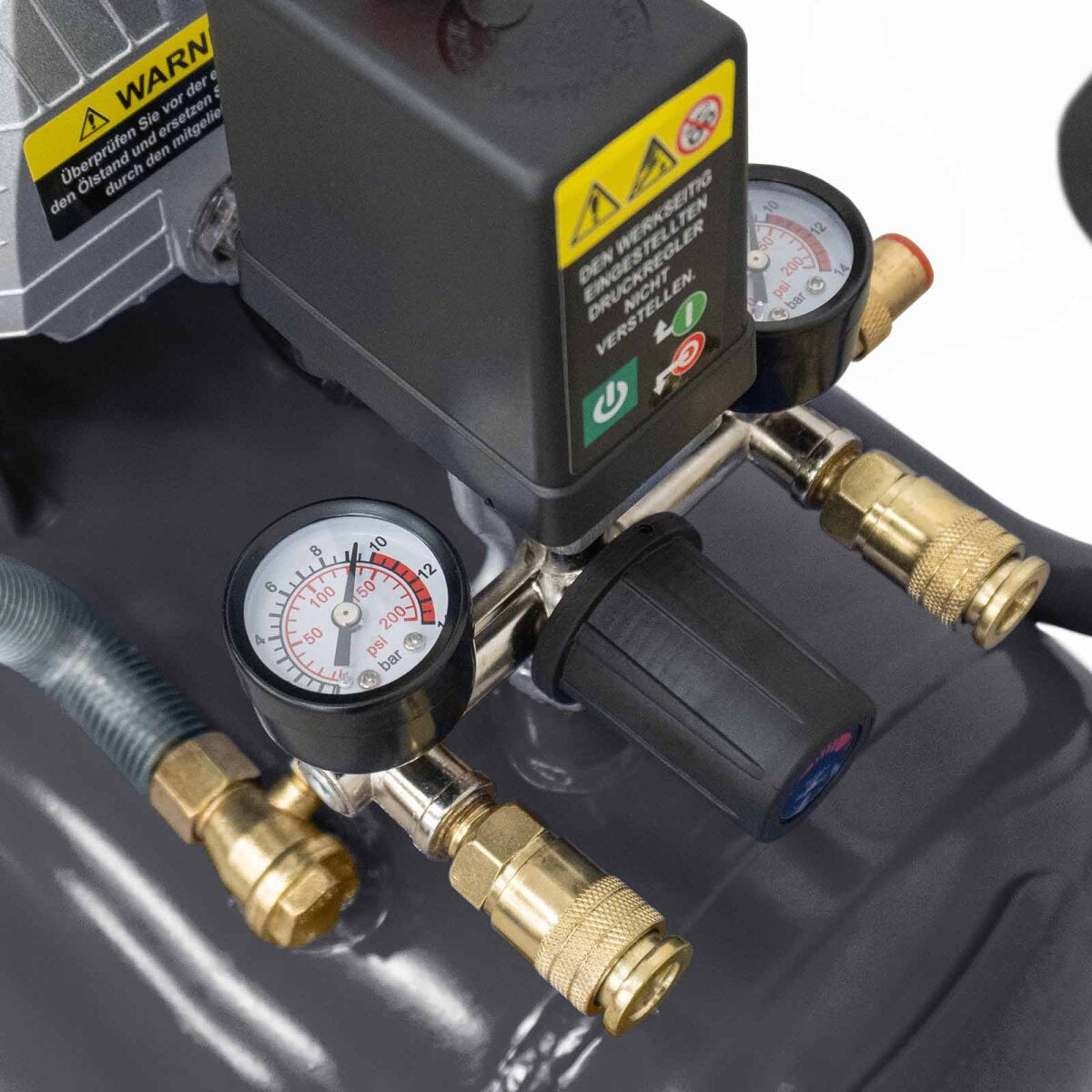

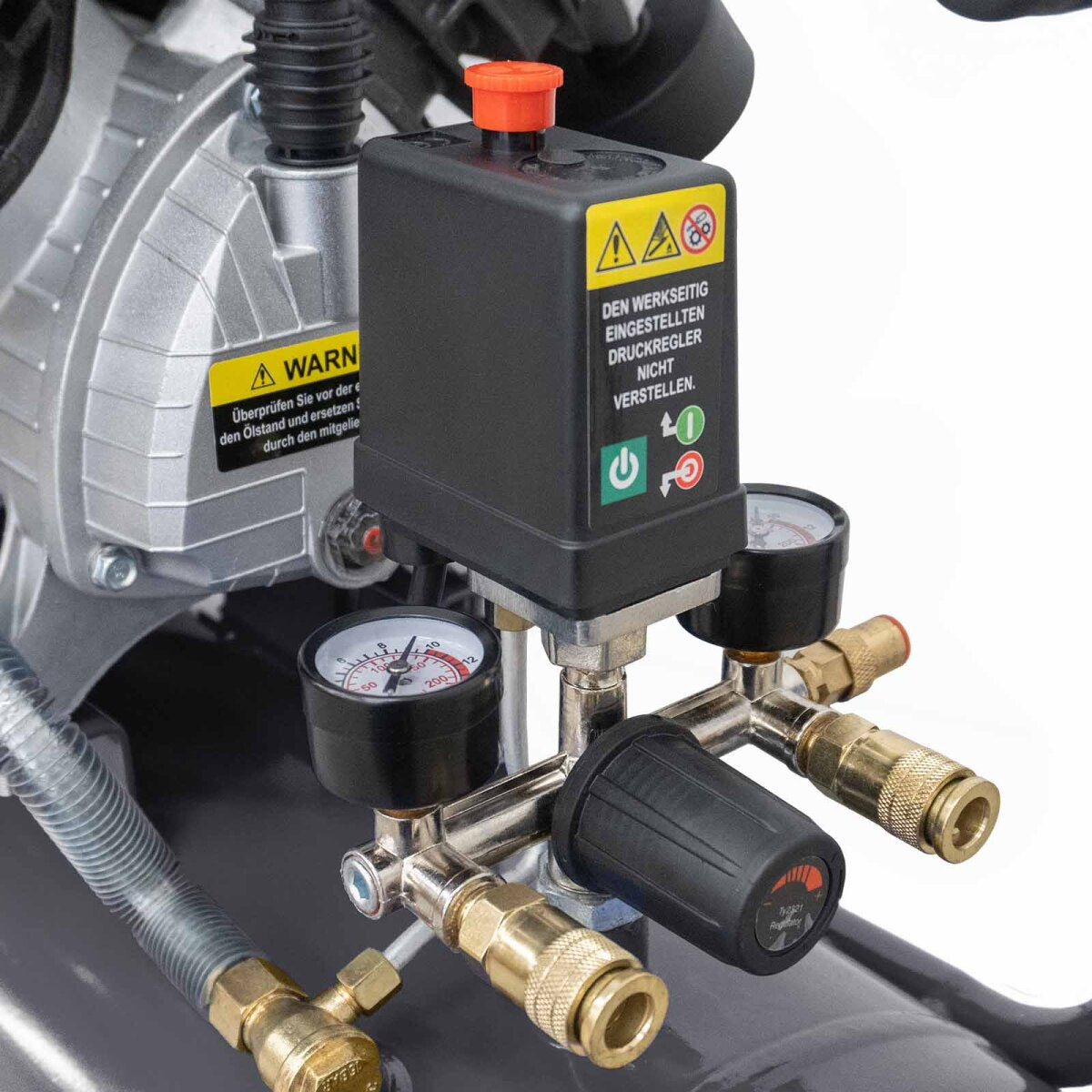

- with adjustable pressure reducer and manometer
- Quick coupling NW 7.2
- Condensate drain valve on the tank
- TÜV-certified safety valve
- Additional compressors and air dryers are available upon request.

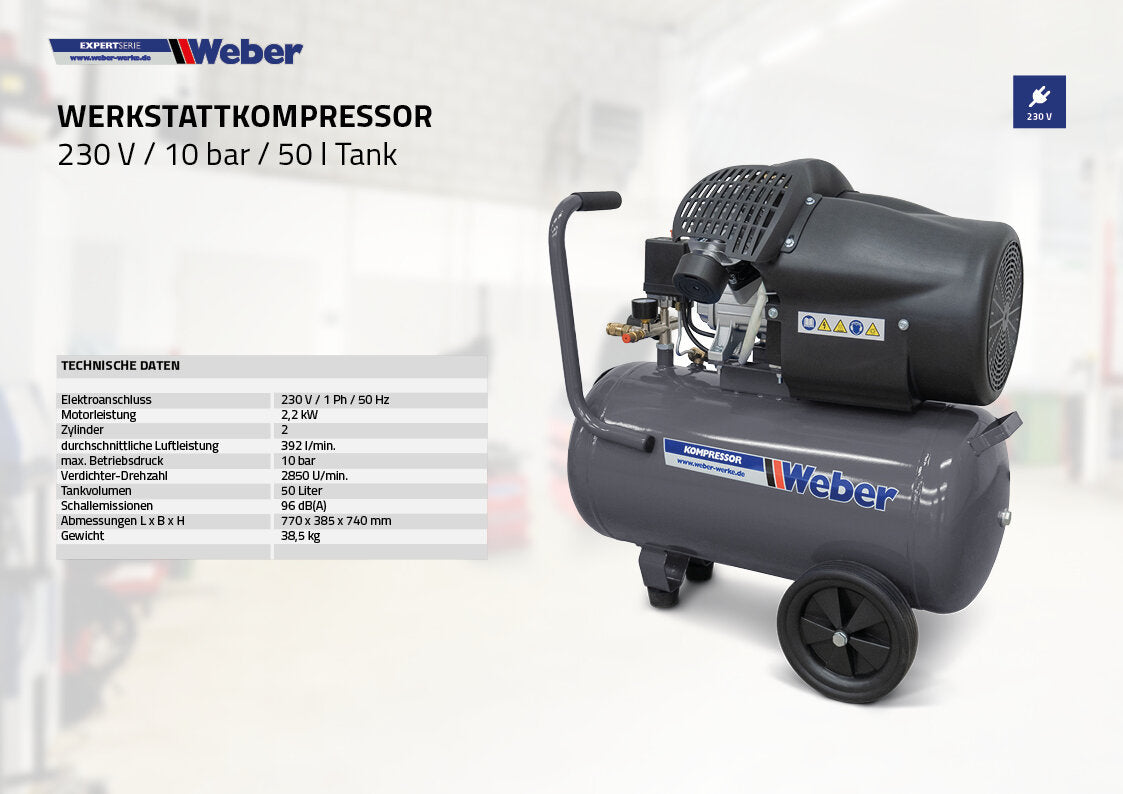

Technical data |
|
| Engine power | 2.2 kW |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Maximum operating pressure | 10 bar |
| cylinder | 2 |
| average air output | 392 l/min. |
| Compressor speed | 2850 rpm. |
| Tank volume | 50 liters |
| Noise emissions | 96 dB(A) |
| Dimensions L x W x H | 770 x 385 x 740 mm |
| Weight | 38.5 kg |
