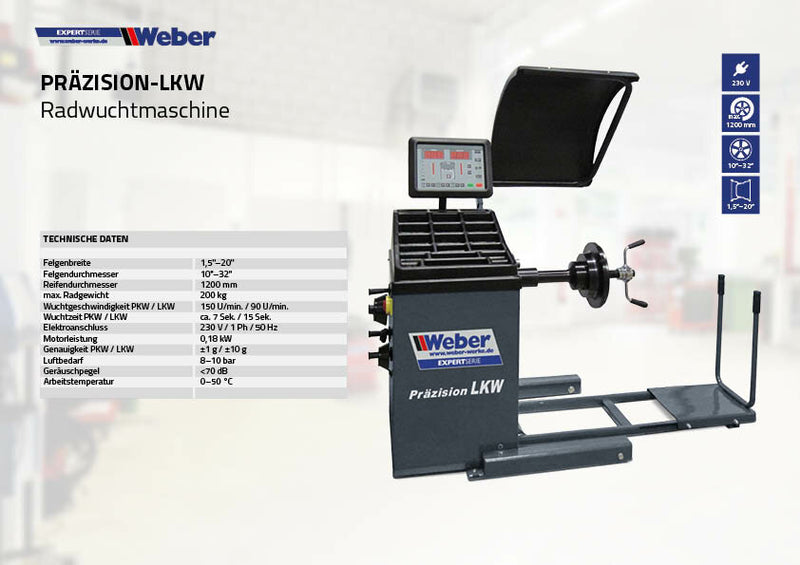

Weber Expert Series truck wheel balancer, precision truck
Original price
29,772.00 kr
-
Original price
29,772.00 kr
Original price
29,772.00 kr
29,772.00 kr
-
29,772.00 kr
Current price
29,772.00 kr

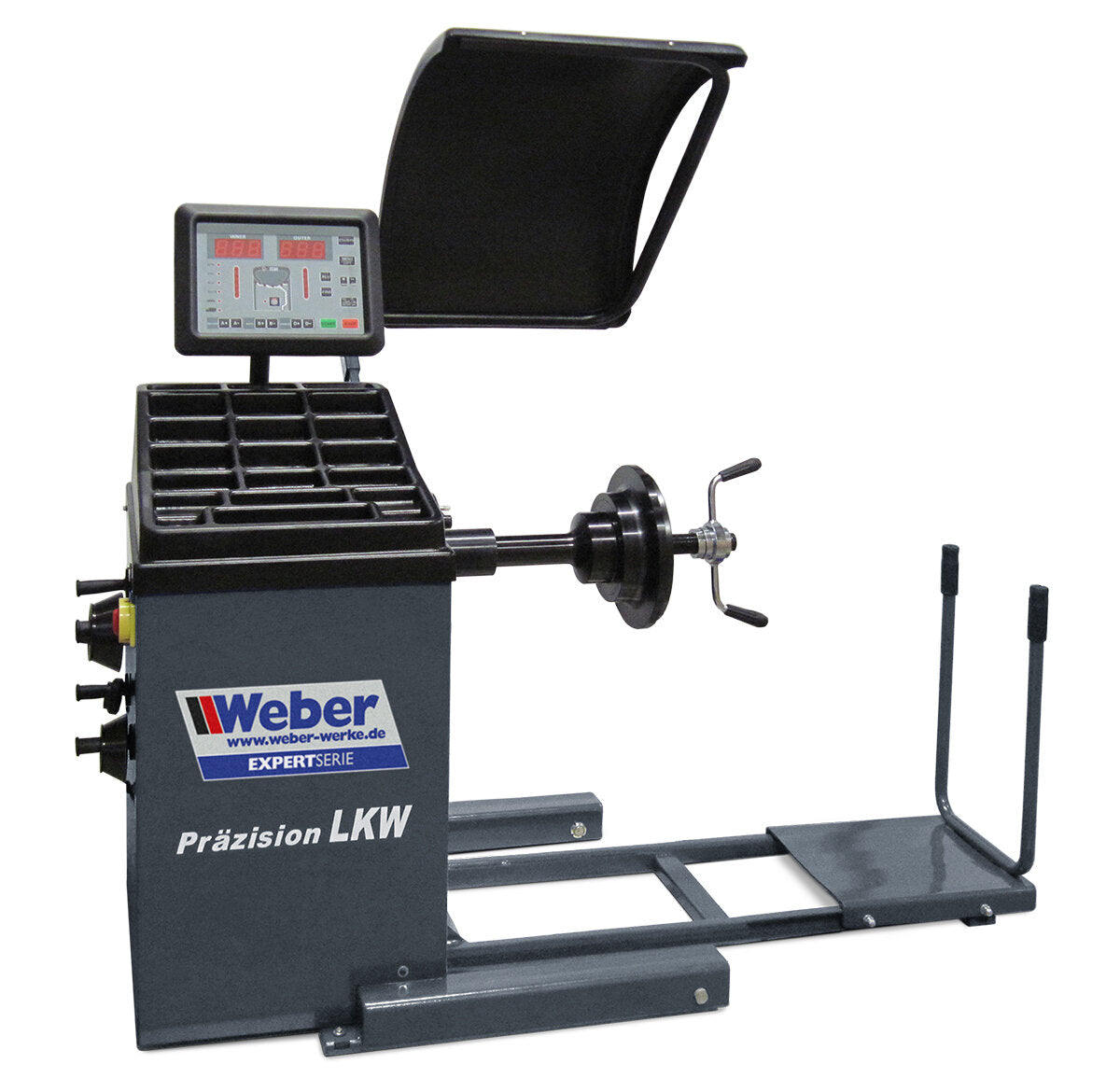

Microprocessor-controlled wheel balancing machine for trucks, cars and vans with pneumatic scissor lift.
- Universal wheel balancer suitable for car, van and heavy truck wheels
- Included in the scope of delivery: 2 quick-release nuts and 7 balancing cones for cars and trucks
- Automatic process with wheel braking and wide program selection between different balancing methods, static and dynamic balancing, as well as balancing of wheels with aluminum rims.
- Pneumatic wheel lift for lifting wheels weighing up to 200 kg
- 4 aluminum wheel programs, as well as a steel wheel program and a truck wheel program
- Integrated software for self-testing and calibration
Technical data |
|
| Air requirements | 8–10 bar |
| Rim diameter | 10"–32" |
| max. wheel weight | 200 kg |
| noise level | <70 dB |
| Engine power | 0.18 kW |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Dead weight | 260 kg |
| Rim width | 1.5"'–20" |
| Tire diameter | 1200 mm |
| Operating temperature | 0–50 °C |
| Impact velocity (car/truck) | 150 rpm / 90 rpm |
| Balancing time for cars / trucks | approx. 7 sec. / 15 sec. |
| Accuracy Car / Truck | ±1 g / ±10 g |
| Diameter of balancing shaft | 40 mm |
