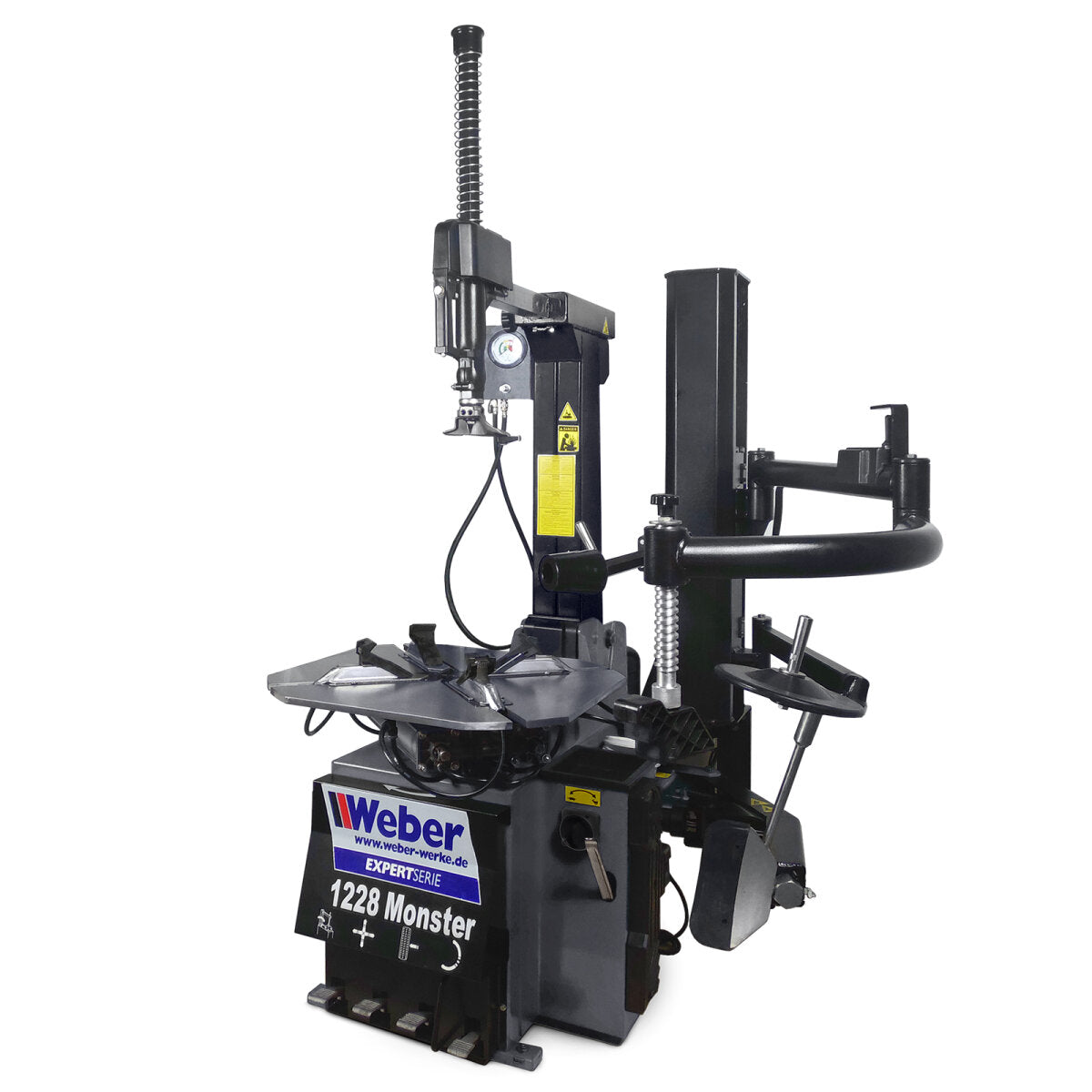

Weber Expert Series 1228 Monster HP car tire mounting machine
Original price
33,041.00 kr
-
Original price
33,041.00 kr
Original price
33,041.00 kr
33,041.00 kr
-
33,041.00 kr
Current price
33,041.00 kr
Fully automatic tire mounting machine with booster system, 2 speeds and rim tensioning up to 28 inches.
- Extremely robust machine for high throughput
- pneumatically tiltable assembly column
- Pneumatic locking and adjustment of the mounting head with sufficient distance between the head and the rim.
- Mounting head with receptacle for plastic protective elements to protect the rim
- Clamping jaws made of high-strength steel for securely clamping the rim from the inside and outside.
- Plastic protective jaws for mounting aluminum rims included in the scope of delivery
- Self-centering clamping plate for rims up to 28"
- 2 adjustable assembly speeds
- Additional operation of the trigger arm on the handle
- Tire inflator and pressure gauge on assembly column
- Air injection system (booster) for shock inflation of the tire via the clamping jaws with additional pressure reservoir
- including auxiliary mounting arm HP1-XL for mounting run-flat and low-profile tires
- Auxiliary mounting arm on the right for mounting run-flat and low-profile tires
- Operation is via a joystick that controls a pneumatic cylinder.
- Hand guard to secure the joystick against unintentional activation
- stable hold-down roller for pressing the tire bead behind the mounting head
- separately height-adjustable hold-down pad via thread
- Lifting roller for raising the tire during the disassembly process
Technical data |
|
| Air requirements | 10 bar |
| max. wheel width | 360 mm |
| max. wheel diameter | 1200 mm |
| noise level | <70 dB |
| Engine power | 1.1 kW |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Rim tension (outer) | 12"–26" |
| Dead weight | 310 kg |
| Inner rim tension | 14"–28" |
| Push-off force | 2500 kg |
| Maximum tire inflation pressure | 3.2 bar |
