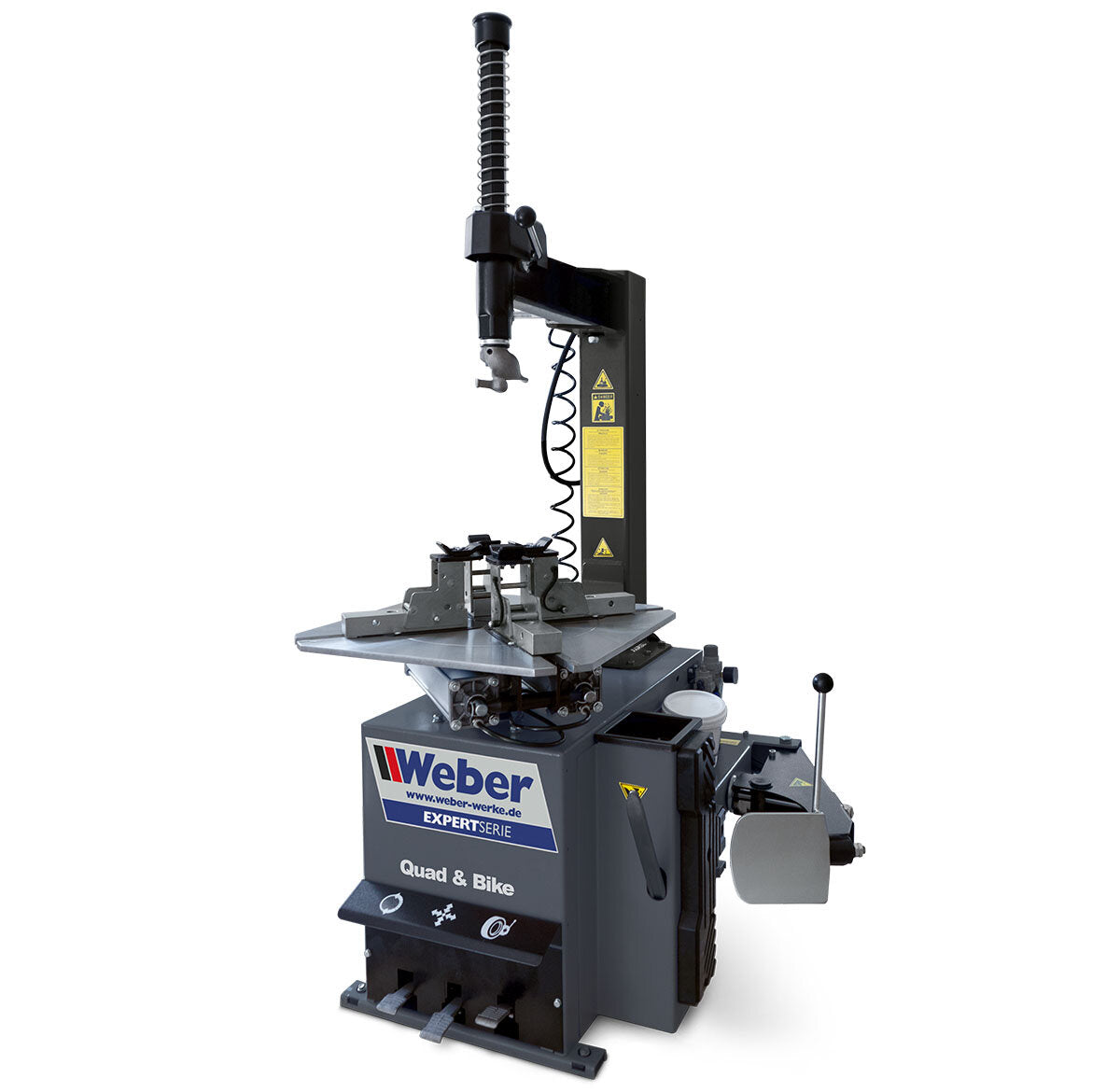

Motorcycle tire mounting machine Weber Expert Series Quad & Bike
Original price
19,820.00 kr
-
Original price
19,820.00 kr
Original price
19,820.00 kr
19,820.00 kr
-
19,820.00 kr
Current price
19,820.00 kr
Semi-automatic tire mounting machine with laterally swiveling mounting arm, suitable for motorcycle wheels with rim sizes of 3.6–24 inches.
Tire mounting machine for motorcycle tires up to 24"
Semi-automatic tire mounting machine with laterally swiveling mounting arm, suitable for motorcycle wheels with rim sizes of 3.6–24 inches.
- side-swiveling mounting arm
- Eccentric clamping of the mounting head
- Short mounting head specifically for mounting motorcycle tires, with a holder for plastic protective elements to protect the rim.
- Stable plastic clamping jaws for gripping the rim from the inside and outside
- Additionally, the clamping range can be easily adjusted using a plug-in pin system.
- Self-centering clamping plate for rim sizes up to 24"
- Extra compact bead breaker shovel for small rim diameters
Technical data |
|
| Air requirements | 10 bar |
| max. wheel width | 225 mm |
| max. wheel diameter | 1000 mm |
| noise level | <70 dB |
| Engine power | 0.55 kW |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Rim tension (outer) | 3.6"–24" |
| Dead weight | 229 kg |
| Color | anthracite – RAL 7016 |
