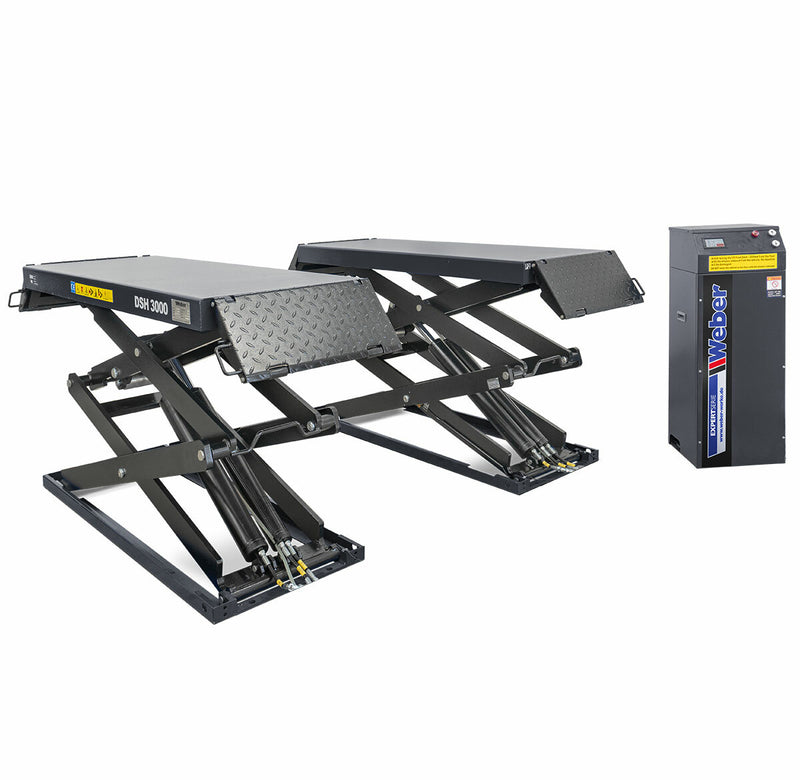

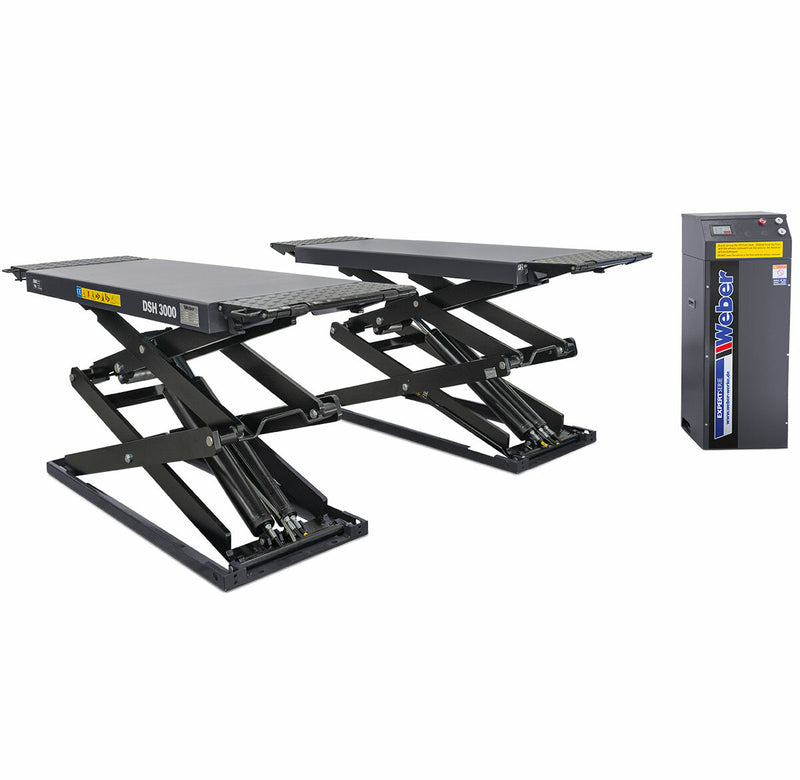

Weber Expert Series DSH-3000 Double Scissor Lift
Electro-hydraulic double scissor lift with a 3000 kg lifting capacity for cars and small vans, designed for floor mounting on the workshop floor. Features a low drive-over height and a redundant hydraulic cylinder system for double safety. Ideal for tire services, body shops, and paint shops.

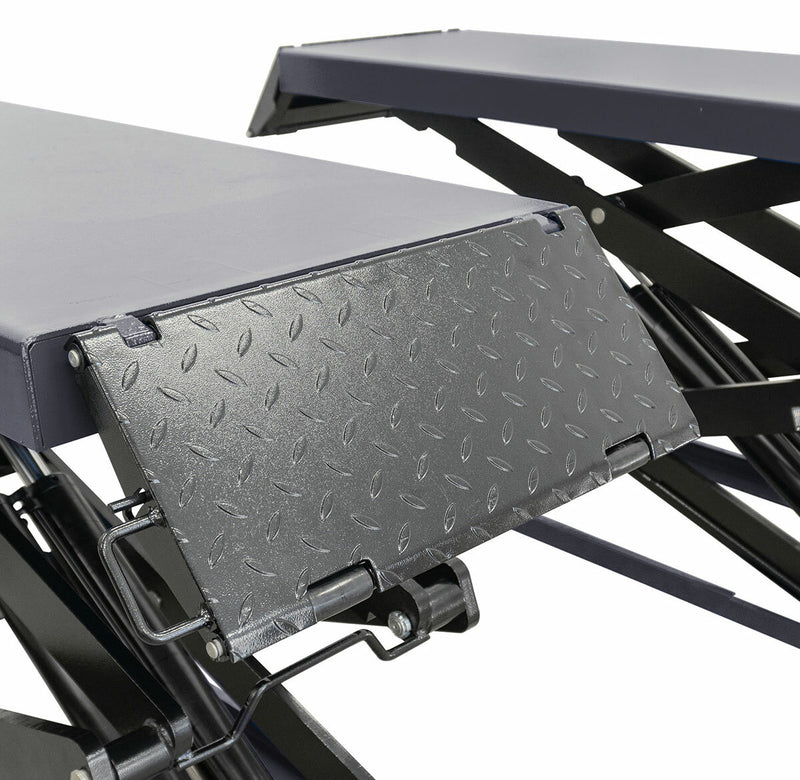

- Vehicle loading area extendable via lockable ramps
- low clearance height
- large lifting height
- absolute freedom of movement
- small space requirement
- no rigid connection between the scissor sections
- Safety and overload valves in the cylinder systems
- electronic synchronization monitoring

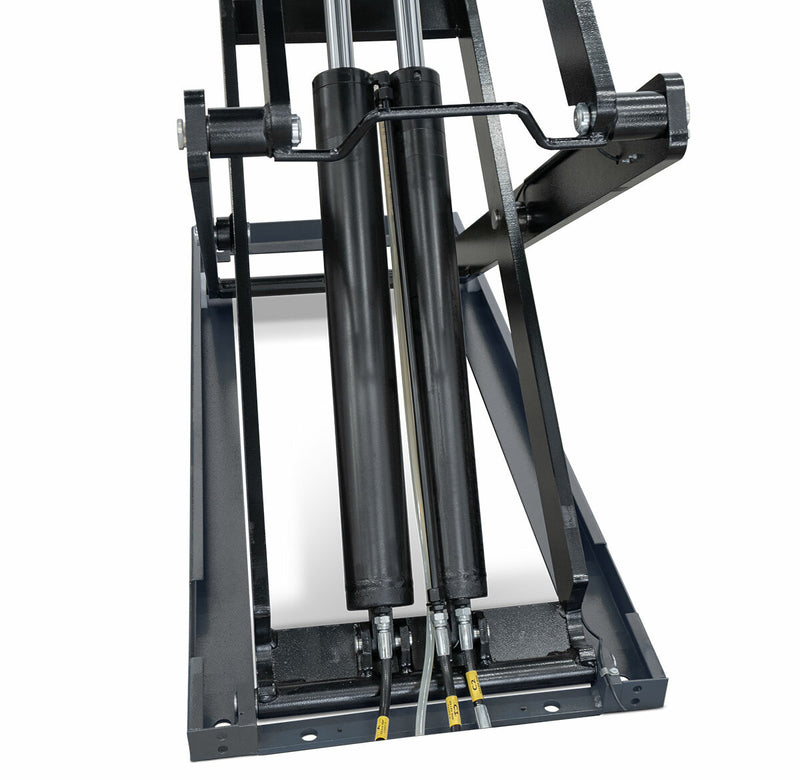

- Double safety through redundant cylinder system and additional electronic synchronization monitoring
- Variable control element with LED status indicator for all functions
- low-wear bearing of the scissor joints
- automatic synchronization of the two scissor elements

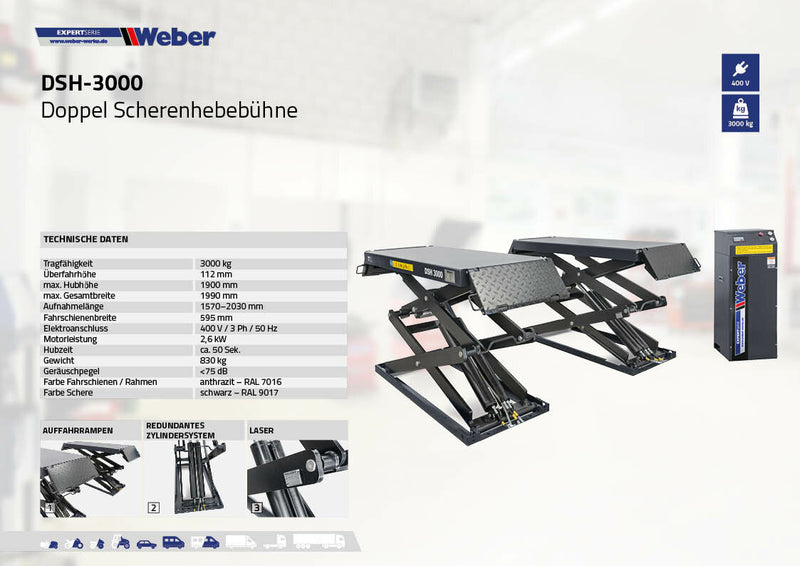

Technical data |
|
| Clearance height | 112 mm |
| Load capacity | 3000 kg |
| Recording length | 1570–2030 mm |
| Track width | 595 mm |
| noise level | <75 dB |
| Engine power | 2.6 kW |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Lift time | approx. 50 sec. |
| Dead weight | 830 kg |
| max. lifting height | 1900 mm |
| max. overall width | 1990 mm |
| Color of rails/frame | anthracite – RAL 7016 |
| Paint Scissors | black – RAL 9017 |
Possible application area
* The applications for our lifting platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Weber GmbH accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. .
