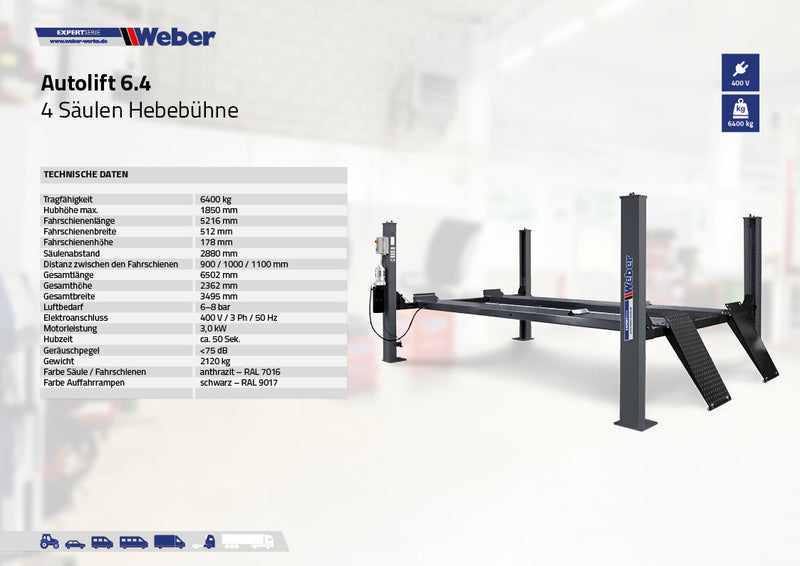

4-post lift Weber Expert series car lift 6.4
Original price
60,594.00 kr
-
Original price
60,594.00 kr
Original price
60,594.00 kr
60,594.00 kr
-
60,594.00 kr
Current price
60,594.00 kr
4-post lift with a lifting capacity of 6400 kg.
- Suitable for cars, vans and light trucks
- Low entry height and long ramps for lowered vehicles
- finely adjustable and levelable for wheel alignment
- Safety locking mechanism and release latches
- automatic rope break and slack rope protection
- Pressure relief valve and pipe rupture safety valve
- Operation via push-button switch with deadman system
- Signal tone protection from the CE stop
- hydraulic pull cylinder with stable cable pull yoke
- fast lifting and lowering speed
- Fixed roll-off protection at the front, mobile and automatic roll-off protection at the rear
- pneumatic unlocking of the safety latches
- Movable rails for maximum flexibility while working
Technical data |
|
| Load capacity | 6400 kg |
| Track width | 512 mm |
| Maximum lifting height. | 1850 mm |
| Air requirements | 6–8 bar |
| Column spacing | 2880 mm |
| noise level | <75 dB |
| Engine power | 3.0 kW |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Lift time | approx. 50 sec. |
| Track length | 5216 mm |
| Track height | 178 mm |
| Distance between the rails | 900 / 1000 / 1100 mm |
| Total length | 6502 mm |
| Total height | 2362 mm |
| Total width | 3495 mm |
| Color of column / driving rails | anthracite – RAL 7016 |
| Color of loading ramps | black – RAL 9017 |
| Weight | 2120 kg |
Possible application area
* The applications for our lifting platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Weber GmbH accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. .
