Weber Expert Series DSH-5000 scissor lift for wheel alignment
Original price
154,156.00 kr
-
Original price
154,156.00 kr
Original price
154,156.00 kr
154,156.00 kr
-
154,156.00 kr
Current price
154,156.00 kr

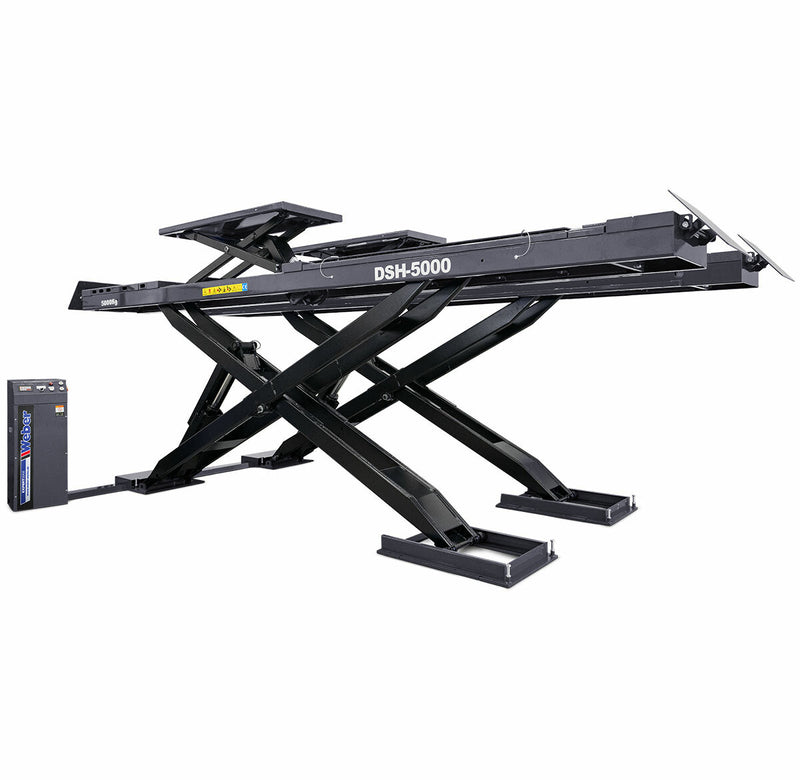

Electro-hydraulic scissor lift with wheel-free lifting mechanism, 5000 kg lifting capacity and variably positionable control unit. Also suitable for wheel alignment.
- electro-hydraulic scissor lift
- Designed for flush-mounted installation (surface mounting possible with optional ramps)
- Integrated wheel lift flush with roadway

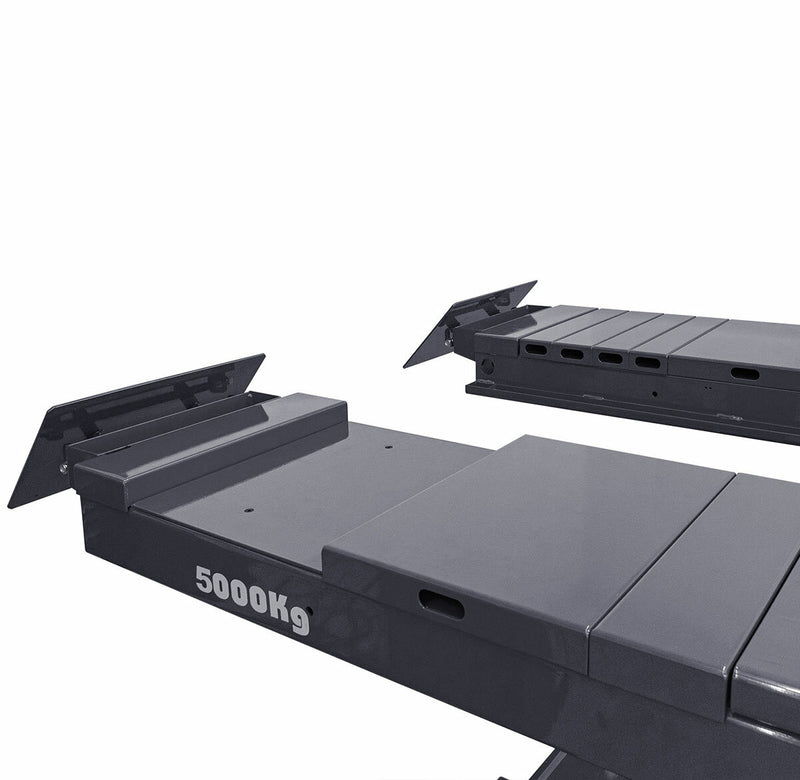

- Recesses for turntable at the front, variably removable
- Manually lockable sliding panels at the rear
- no rigid connection between the scissor sections
- Safety and overload valves in hydraulic systems
- electronic synchronization monitoring

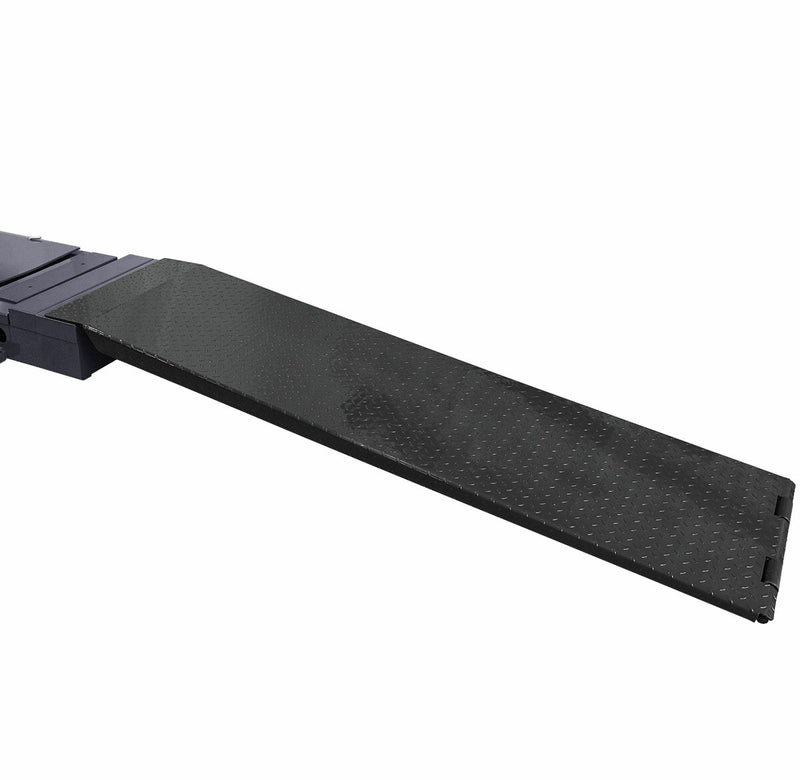

- Ramps as roll-off protection at the rear end of the roadway
- Automatic mechanical locking latches with pneumatic release
- low-wear bearing of the scissor joints

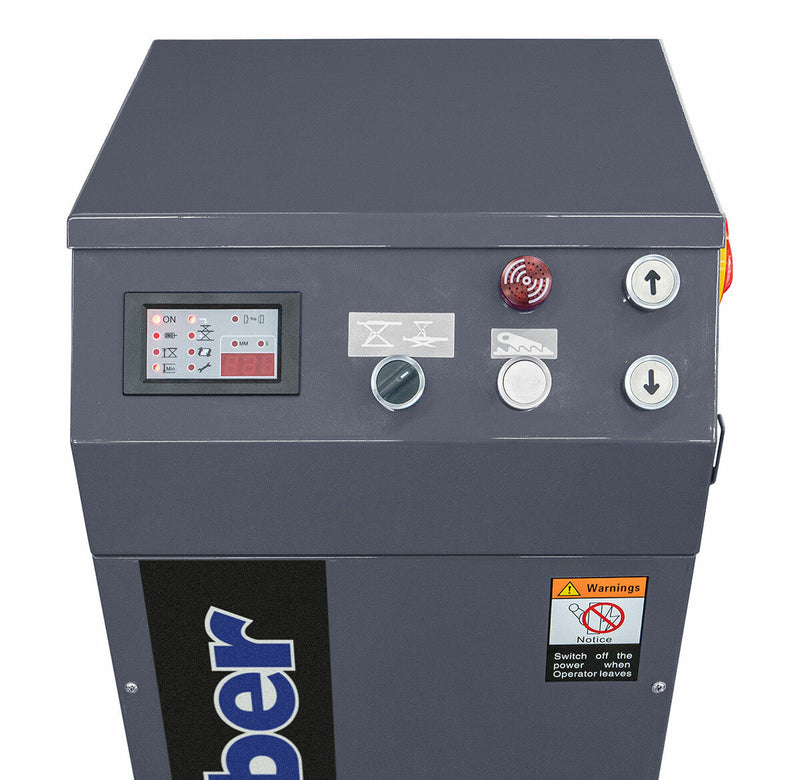

- variably positionable control element
- absolute freedom of movement
- Shortening of the running rails by 300 mm is possible.
Technical data |
|
| Clearance height | 310 mm / flush-mounted installation |
| Load capacity | 5000 kg |
| Recording length | 5300 mm |
| Track width | 608 mm |
| Track spacing | 997 mm |
| Air requirements | 6-8 bar |
| Color of rails / frame | anthracite – RAL 7016 |
| Paint Scissors / Ramps | black – RAL 9017 |
| noise level | <75 dB |
| Engine power | 3.5 kW |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Lift time | approx. 70 sec. |
| Dead weight | 3040 kg |
| max. lifting height | 2160 mm / 1850 mm |
| max. overall width | 2213 mm |
| Load capacity wheel-free jack | 4000 kg |
| Maximum lifting height of wheel-free jacks | 430 mm |
| Lifting length wheel-free jack | 1500-2000 mm |
| Track width, wheel-free lift | 608 mm |
| Weight | 3210 kg |
Possible application area
* The applications for our lifting platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Weber GmbH accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. .
