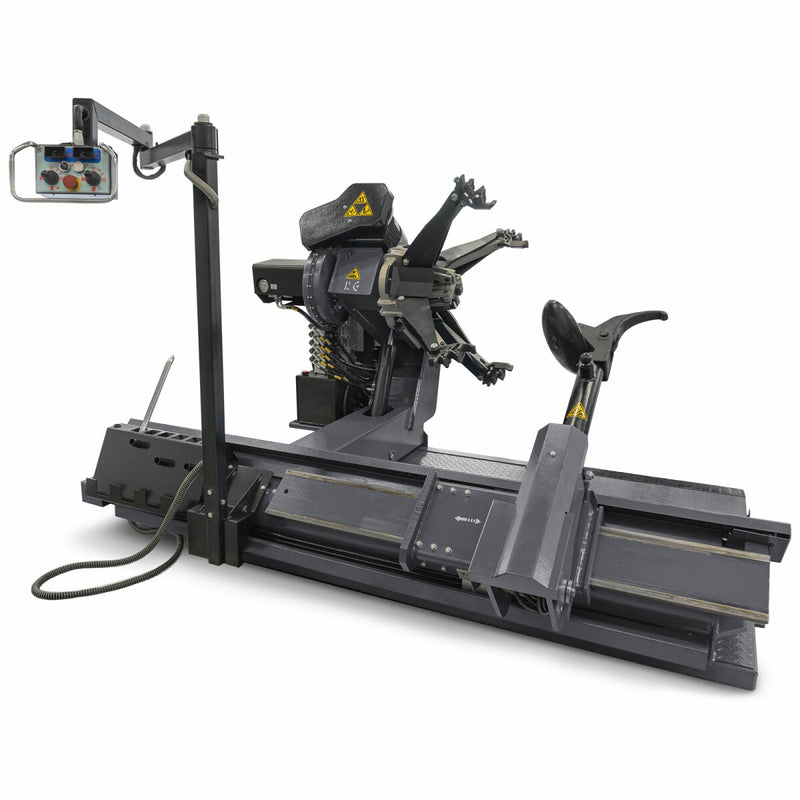

Weber Expert Series 171-truck truck tire mounting machine
Original price
143,137.00 kr
-
Original price
143,137.00 kr
Original price
143,137.00 kr
143,137.00 kr
-
143,137.00 kr
Current price
143,137.00 kr
Professional tire mounting machine for large wheels up to 56". Ideally suited for trucks, buses, agricultural machinery, excavators and special vehicles.
- Easy tire change for trucks, buses, agricultural machinery, excavators and special vehicles
- solid, durable construction
- High-precision machine for high throughput

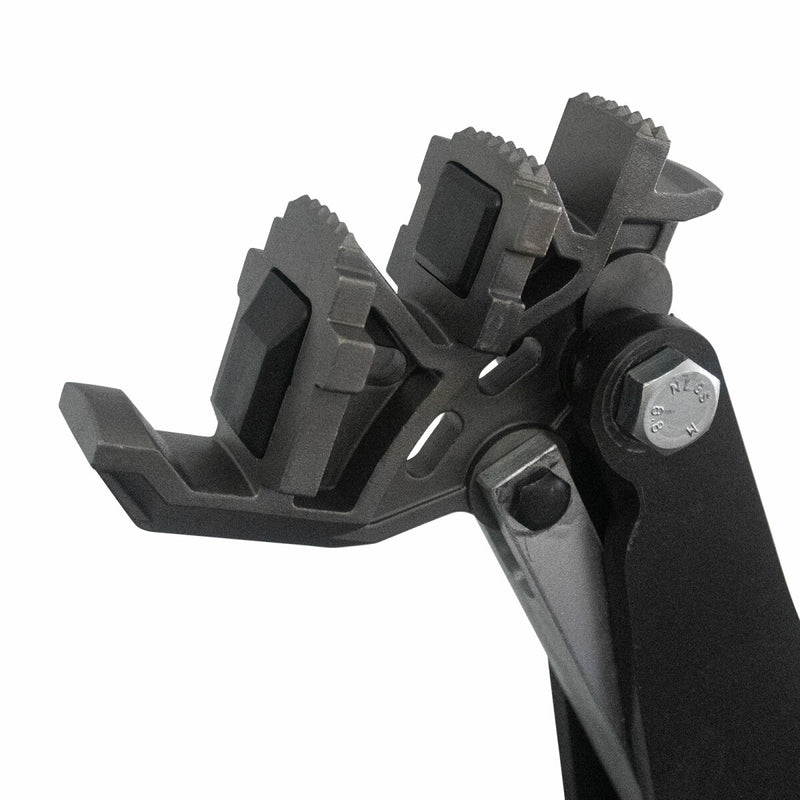

- Clamping of rims up to 46" possible, with optional accessories also suitable for aluminum rims up to 46"
- Clamping of steel rims up to 56" possible with optional clamping jaw extension
- Clamping device with clockwise and counterclockwise rotation and two rotation speeds
- two hydraulic speed stages

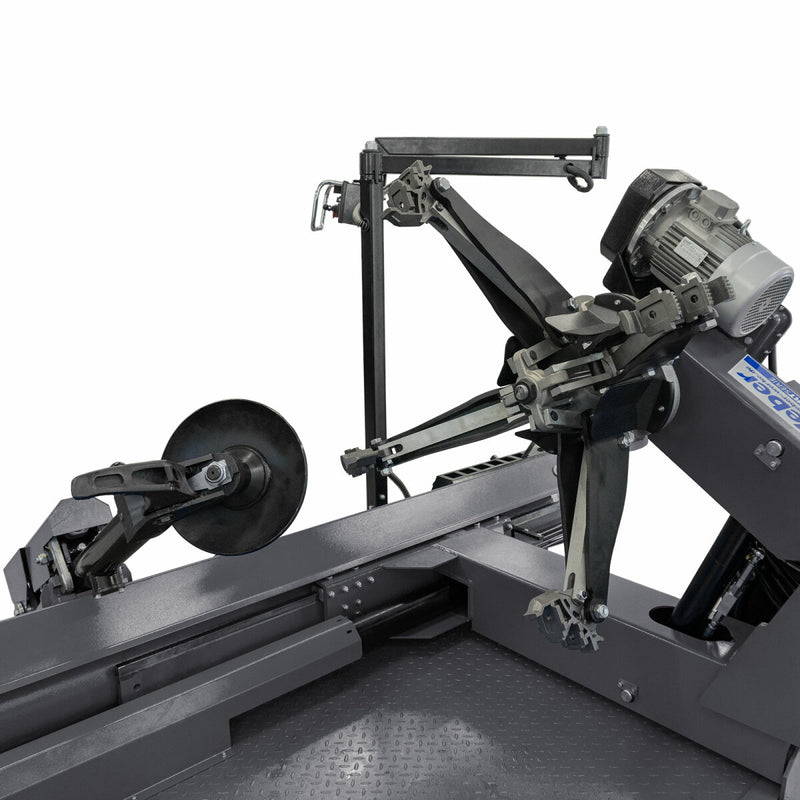

- two tools running synchronously with each other (clamping and mounting arm)
- hydraulic fold-out and rotatable tool changer
- hydraulic drive for clamping device and mounting arm

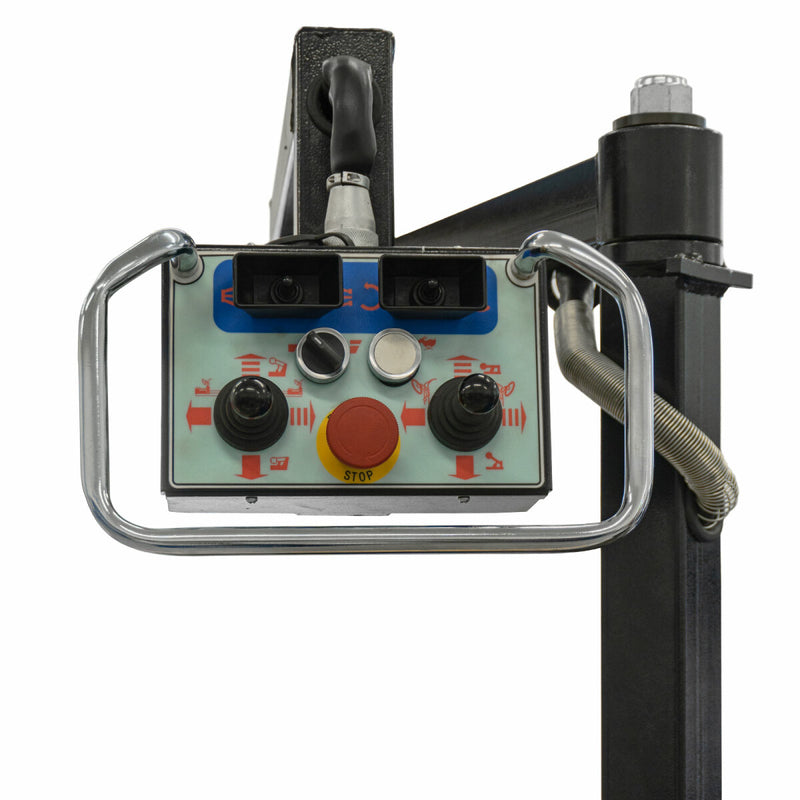

- The swiveling control element allows for easy operation from any position.

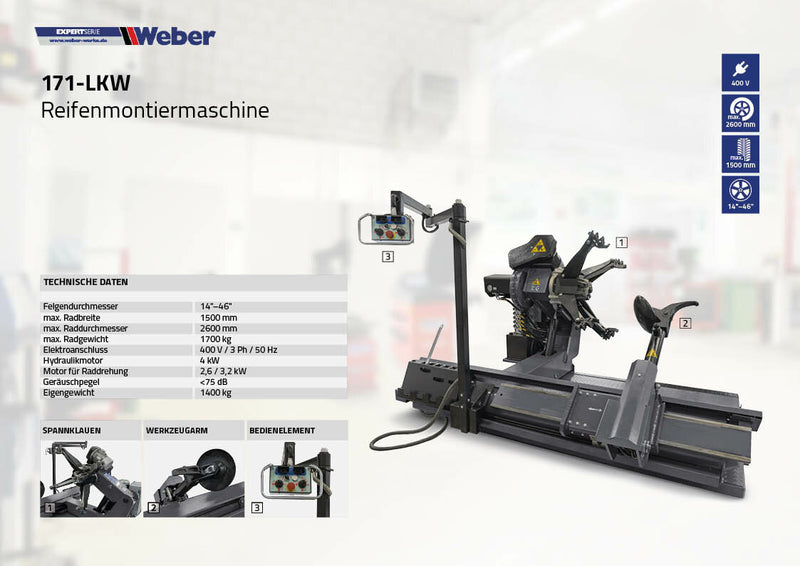

Technical data |
|
| Rim diameter | 14"–46" |
| max. wheel width | 1500 mm |
| max. wheel diameter | 2600 mm |
| max. wheel weight | 1700 kg |
| hydraulic motor | 4 kW |
| Motor for wheel rotation | 2.6 / 3.2 kW |
| noise level | <75 dB |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Dead weight | 1400 kg |
