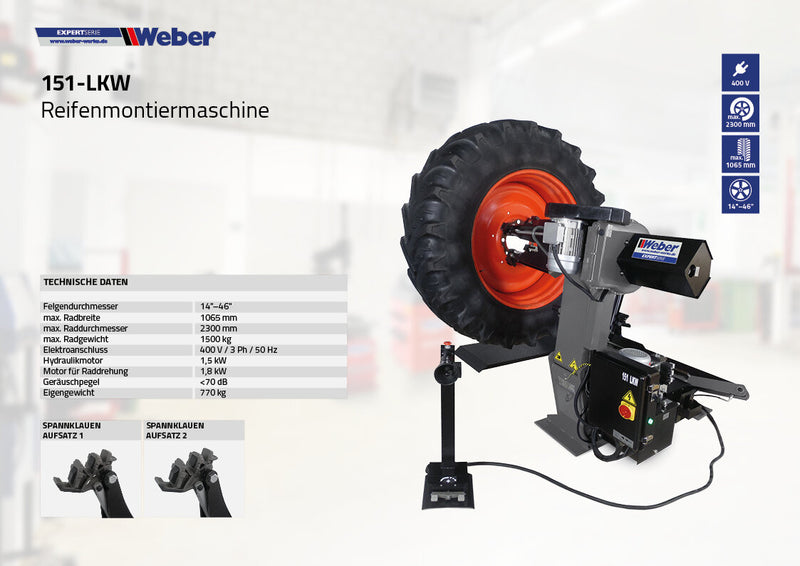

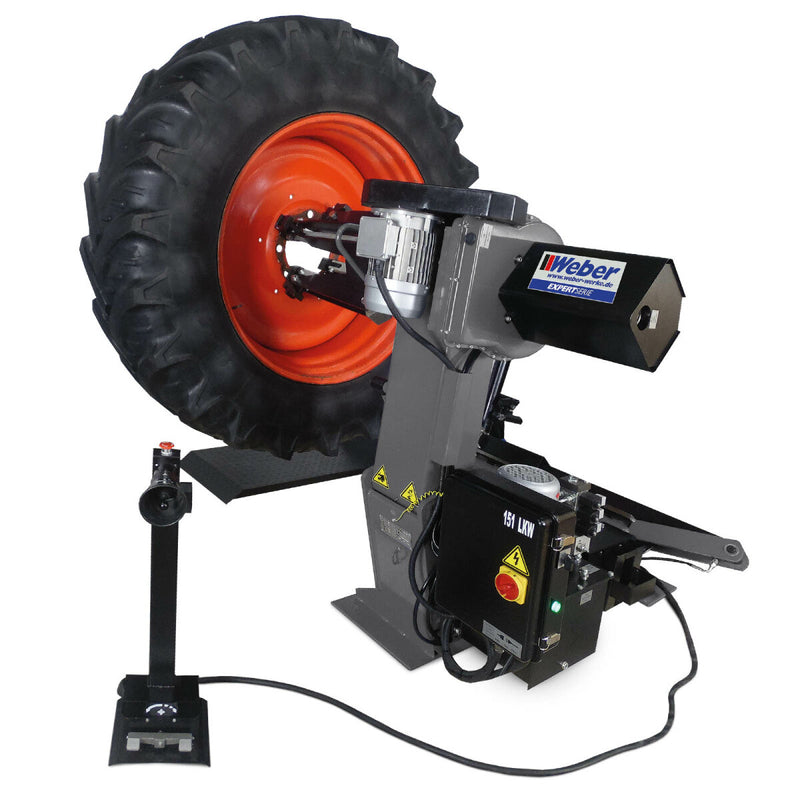

Weber Expert Series 151-truck truck tire mounting machine
Original price
82,632.00 kr
-
Original price
82,632.00 kr
Original price
82,632.00 kr
82,632.00 kr
-
82,632.00 kr
Current price
82,632.00 kr
Truck tire mounting machine for truck wheels up to 46 inch rim size.
- Easy tire change for trucks, buses, agricultural machinery, excavators and special vehicles
- compact, space-saving design
- High-precision machine for high throughput
- Clamping of rims up to 46" possible, with optional accessories also suitable for aluminum rims up to 46"
- Clamping of steel rims up to 56" possible with optional clamping jaw extension
- Clamping device with clockwise, counterclockwise rotation and two rotation speeds
- stable, spring-assisted tool changer, manually foldable and rotatable
- Two manually selectable tool changer positions to quickly change the work area.
- hydraulic drive for lifting arm and clamping device
- uncomplicated operation thanks to a lightweight, mobile control element with hand and foot operation.
Technical data |
|
| Rim diameter | 14"–46" |
| max. wheel width | 1065 mm |
| max. wheel diameter | 2300 mm |
| max. wheel weight | 1500 kg |
| hydraulic motor | 1.5 kW |
| Motor for wheel rotation | 1.8 kW |
| noise level | <70 dB |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Dead weight | 770 kg |
