Car tire mounting machine 1024-XL-2HP and wheel balancer Precision-XL 3D
Original price
47,922.00 kr
-
Original price
47,922.00 kr
Original price
47,922.00 kr
47,922.00 kr
-
47,922.00 kr
Current price
47,922.00 kr

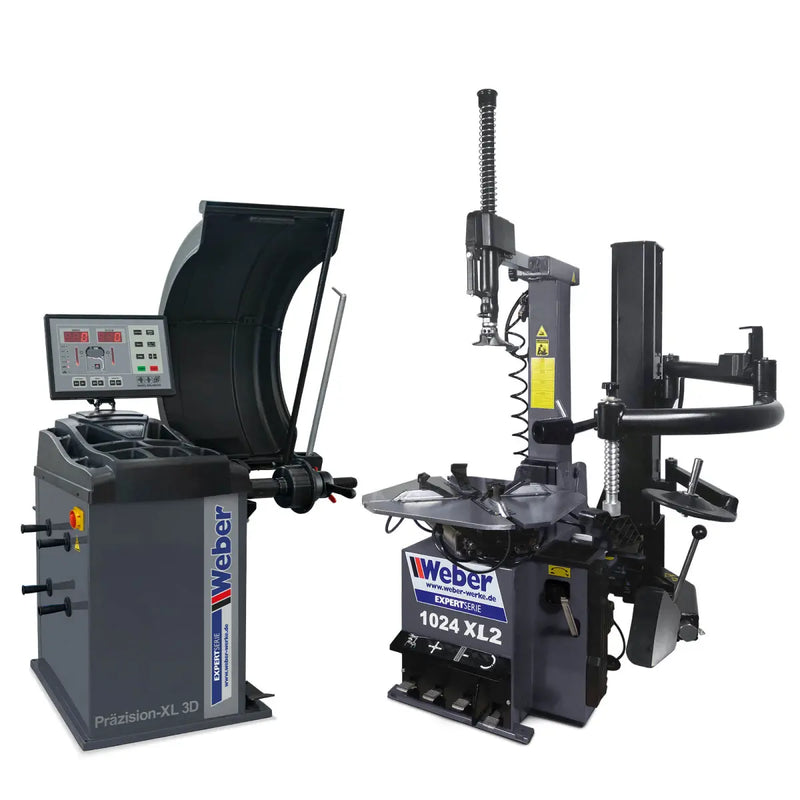

Tire service package consisting of a wheel balancing machine and a tire mounting machine including an auxiliary mounting arm from the Weber Expert series.
Tire mounting machine for cars, vans and motorcycles
- High-precision machine for high throughput
- pneumatically tiltable assembly column
- Pneumatic locking and adjustment of the mounting head with sufficient distance between the head and the rim.

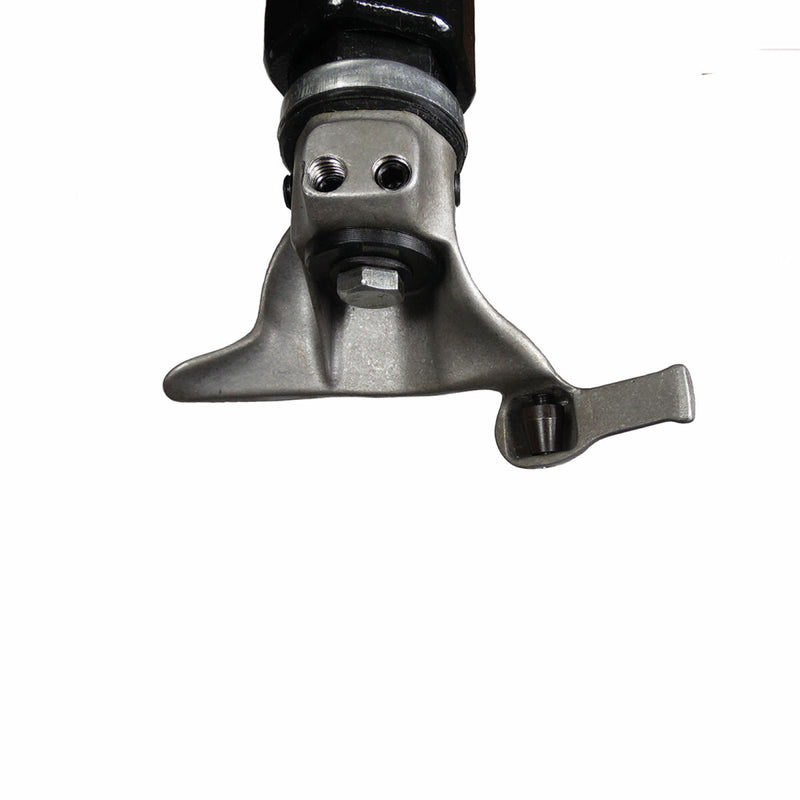

- Mounting head with receptacle for plastic protective elements to protect the rim
- Clamping jaws made of high-strength steel for securely clamping the rim from the inside and outside.
- Plastic protective jaws for mounting aluminum rims included in the scope of delivery

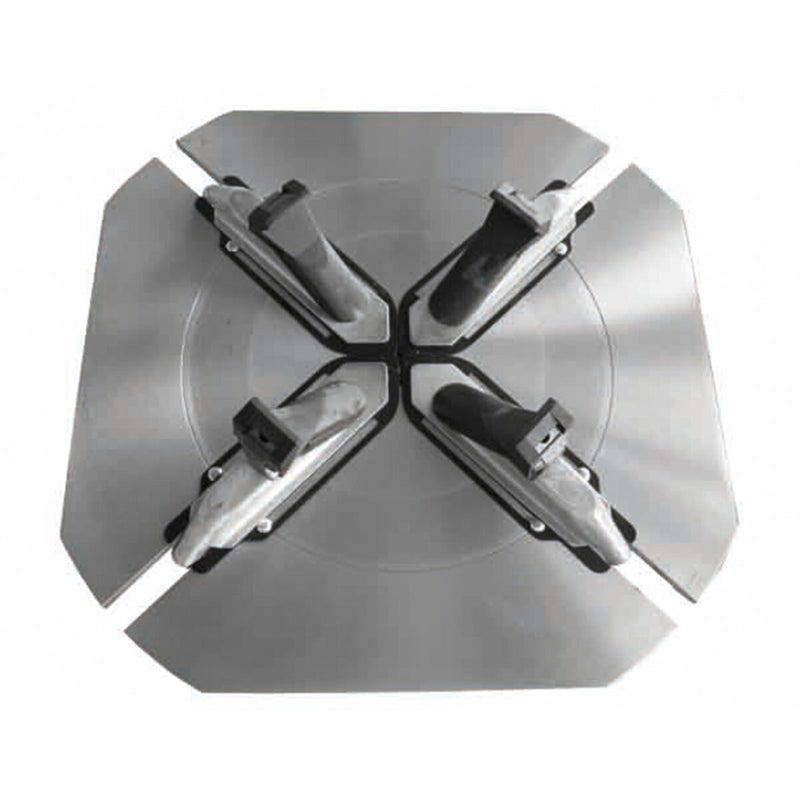

- Self-centering clamping plate for rims up to 24"
- 2 adjustable assembly speeds
- including auxiliary mounting arm HP1-XL right for mounting run-flat and low-profile tires
HP1-XL auxiliary mounting arm
- Right-hand auxiliary mounting arm for mounting run-flat and low-profile tires
- Operation is via a joystick that controls a pneumatic cylinder.
- Hand guard to secure the joystick against unintentional activation
- stable hold-down roller for pressing the tire bead behind the mounting head
- separately height-adjustable hold-down pad via thread
- Lifting roller for raising the tire during the disassembly process
Wheel balancing machine for cars and small vans
- Automatic process with wheel braking and wide program selection between different balancing methods, static and dynamic balancing, as well as balancing of wheels with aluminum rims.
- 3D – automatic data transfer of rim data

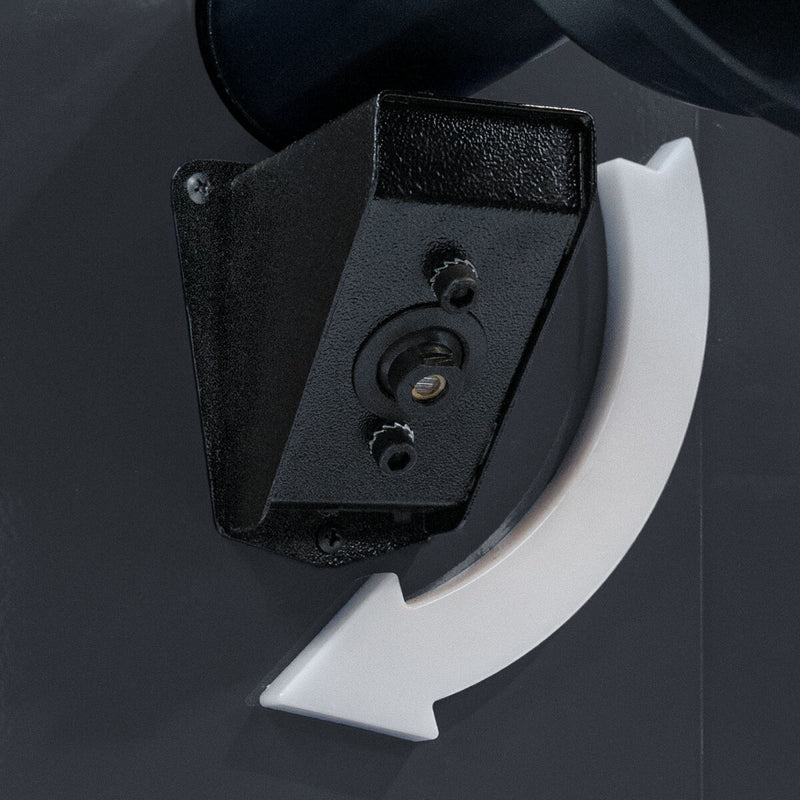

- Laser – for precise positioning of the adhesive weights

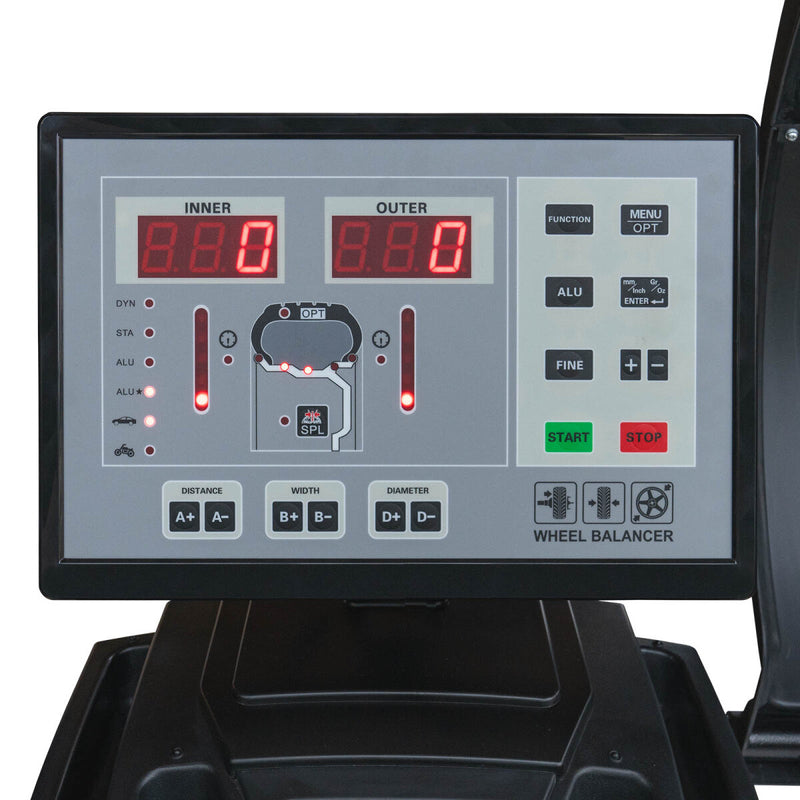

- Compact and economical wheel balancing machine with a microprocessor-controlled dual-LED display for wheels of cars and light commercial vehicles.
- 5 aluminum wheel programs, as well as a steel wheel program and a motorcycle program
- Integrated software for self-testing and calibration
- Optional motorcycle adapter and universal flange available
- “Clip system” for easy attachment of the adhesive weights
- Locking pedal to hold the wheel, makes attaching weights easier.

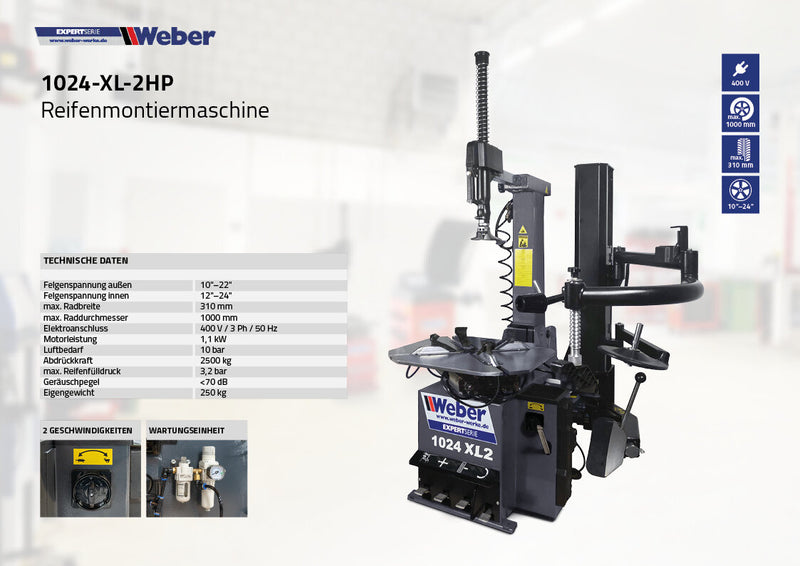

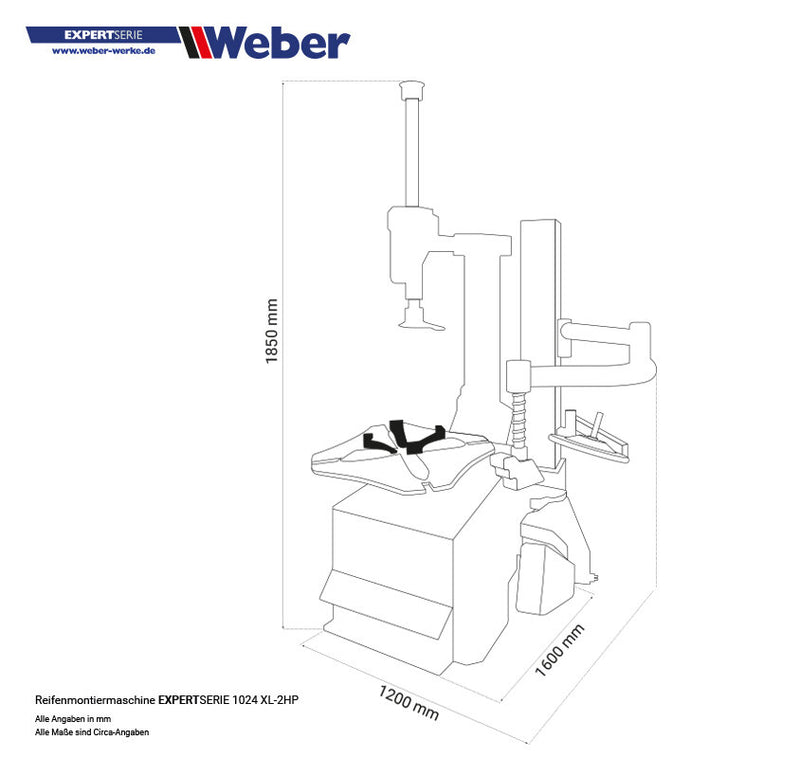

Technical specifications – Tire mounting machine 1024-XL-2HP |
|
| Rim tension (outer) | 10"–22" |
| Inner rim tension | 12"–24" |
| max. wheel width | 310 mm |
| max. wheel diameter | 1000 mm |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Engine power | 1.1 kW |
| Air requirements | 10 bar |
| Push-off force | 2500 kg |
| Maximum tire inflation pressure | 3.2 bar |
| noise level | <70 dB |
| Dead weight | 250 kg |

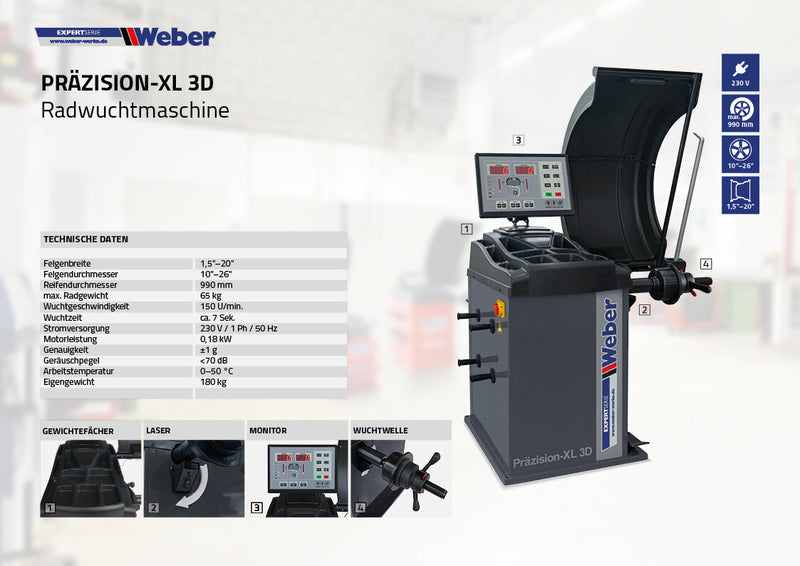

Technical specifications – Precision-XL 3D wheel balancing machine |
|
| Rim width | 1.5"–20" |
| Rim diameter | 10"–26" |
| Tire diameter | 990 mm |
| max. wheel weight | 65 kg |
| Impact velocity | 150 rpm. |
| Balancing time | approx. 7 sec. |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Engine power | 0.18 kW |
| accuracy | ±1 g |
| noise level | <70 dB |
| Operating temperature | 0–50 °C |
| Dead weight | 180 kg |

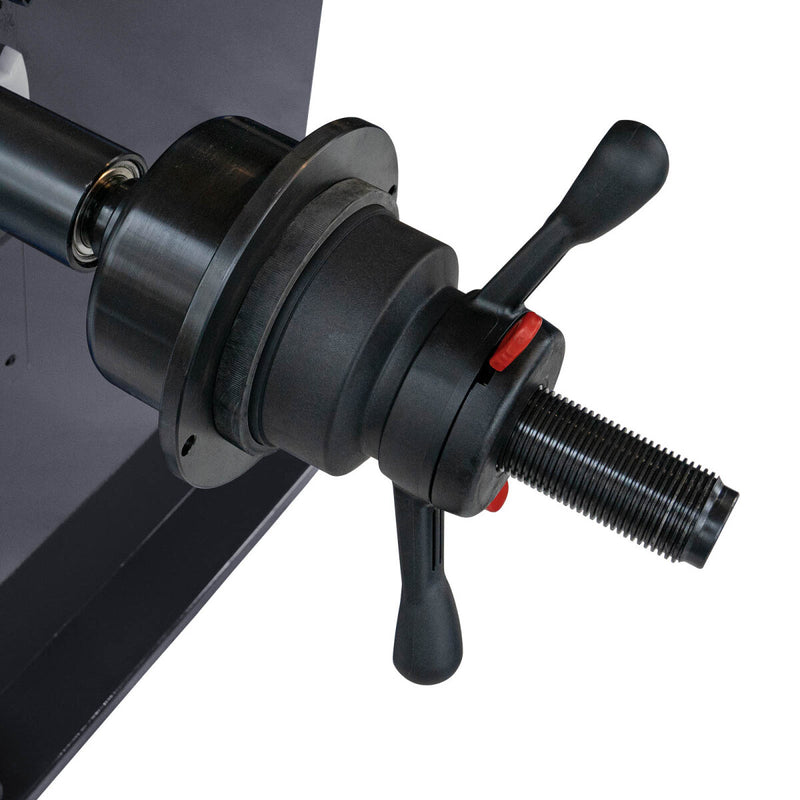

| Diameter of balancing shaft | 40 mm |
