STM-102 car tire mounting machine and "ECO" wheel balancer
Original price
17,620.00 kr
-
Original price
17,620.00 kr
Original price
17,620.00 kr
17,620.00 kr
-
17,620.00 kr
Current price
17,620.00 kr

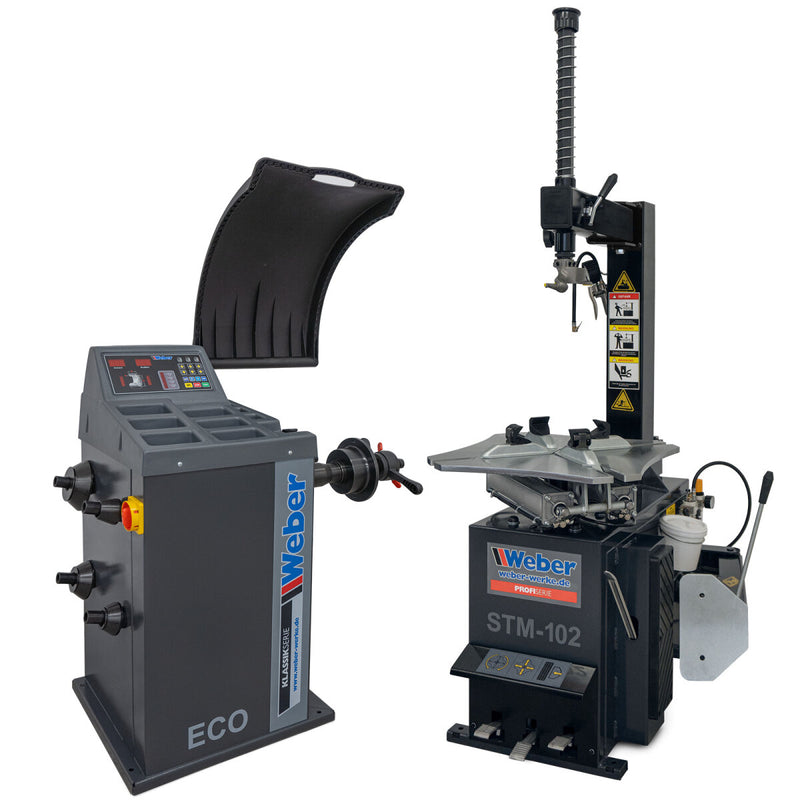

Tire service machine package consisting of a tire mounting machine with a laterally swiveling mounting arm from the Weber Profi series and a wheel balancing machine from the Weber Klassik series.
Tire mounting machine for cars and light commercial vehicles
- side-swiveling mounting arm
- Eccentric clamping of the mounting head
- Ideal clamping range for cars and small vans (motorcycle adapter optional)

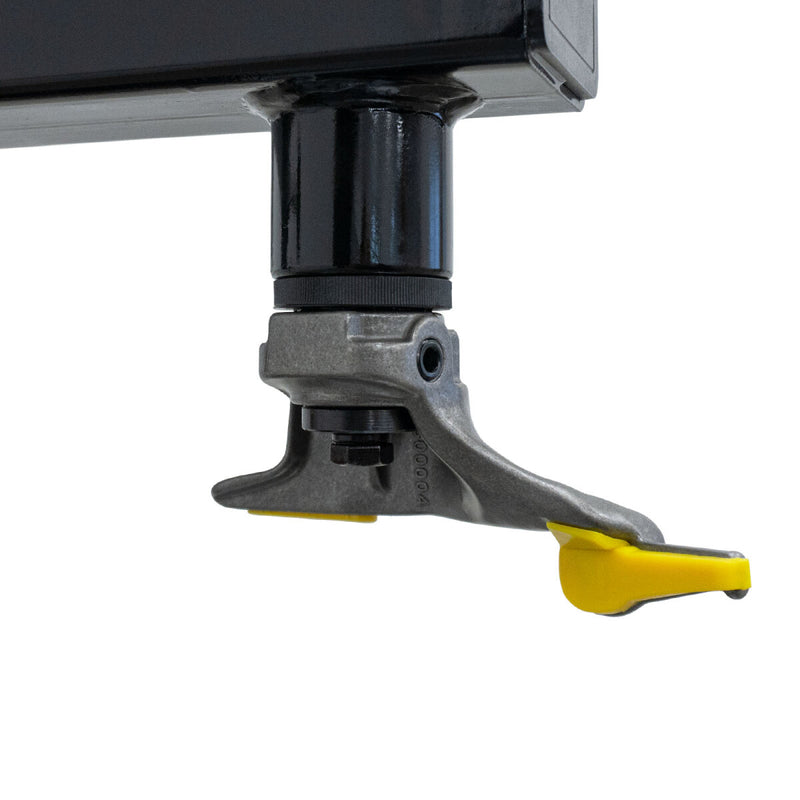

- Mounting head with receptacle for plastic protective elements to protect the rim
- Clamping jaws made of high-strength steel for securely clamping the rim from the inside and outside.

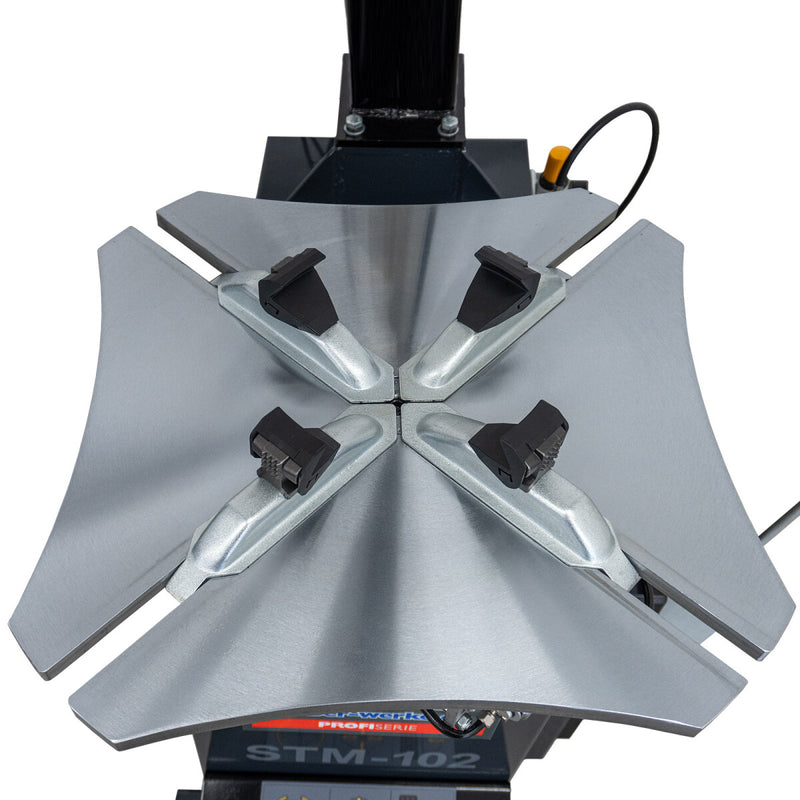

- Self-centering clamping plate for rims up to 24"

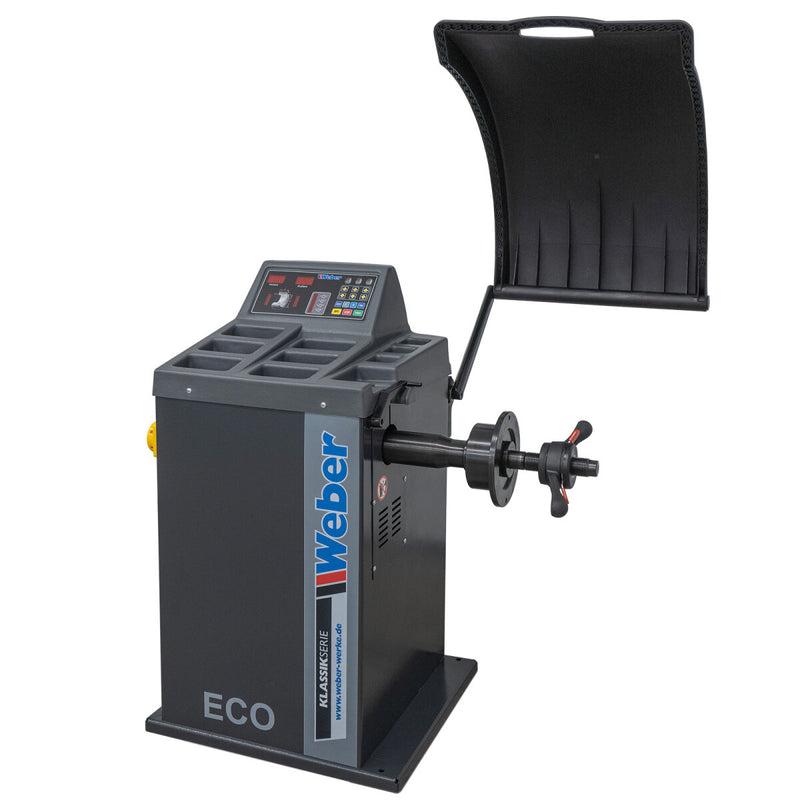

Wheel balancing machine for rims up to 24"

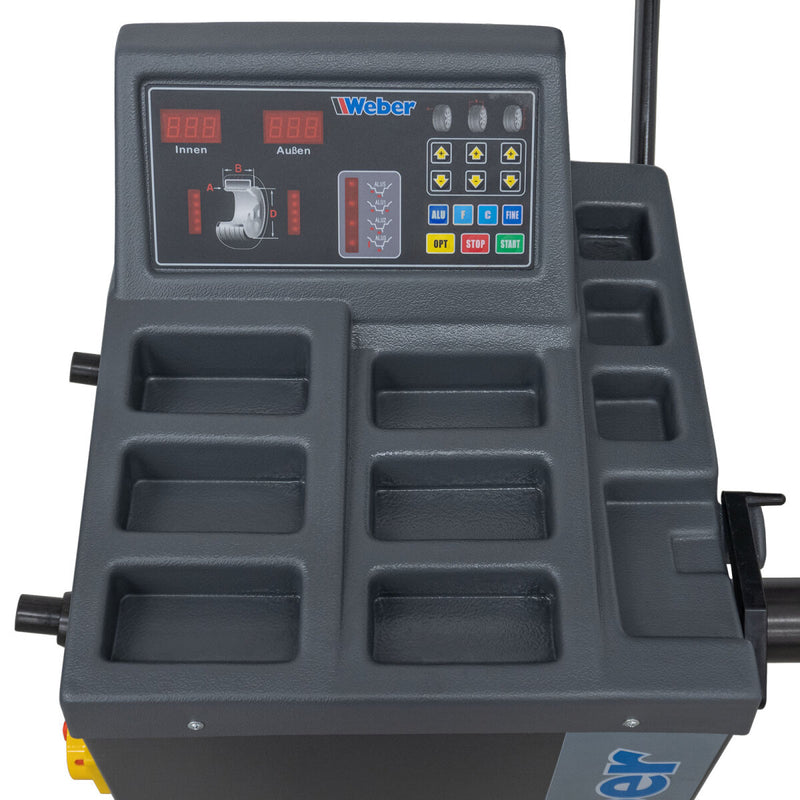

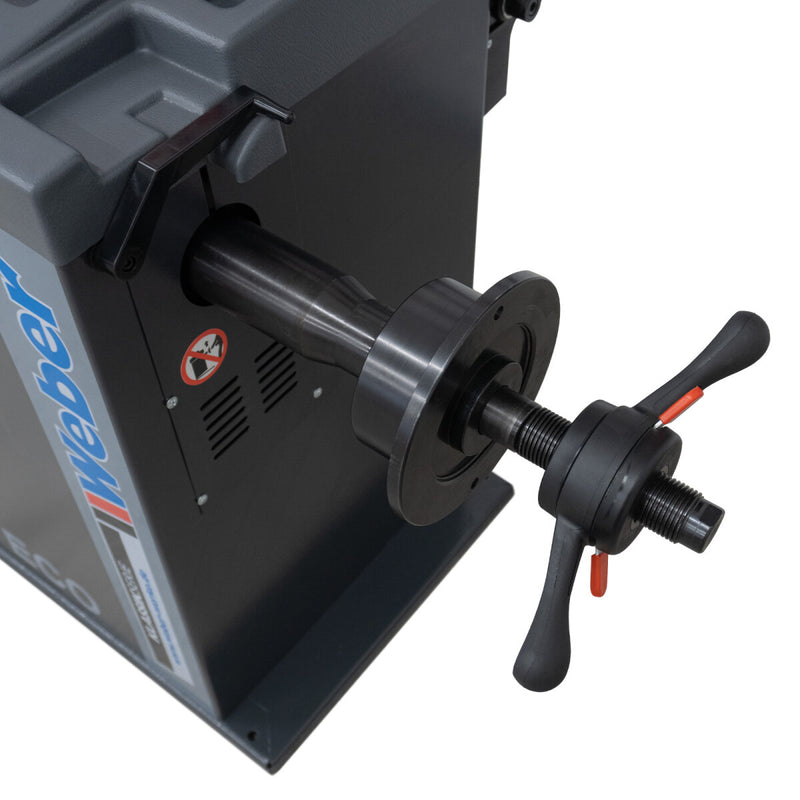

The Weber Klassik "ECO" series wheel balancer combines robust technology with a compact design and ease of use, making it ideal for small workshops, fleet managers, and private users. The balancer features a program for balancing steel rims and four additional programs for aluminum rims up to a maximum diameter of 24". Both static and dynamic balancing are possible.
- static and dynamic balancing

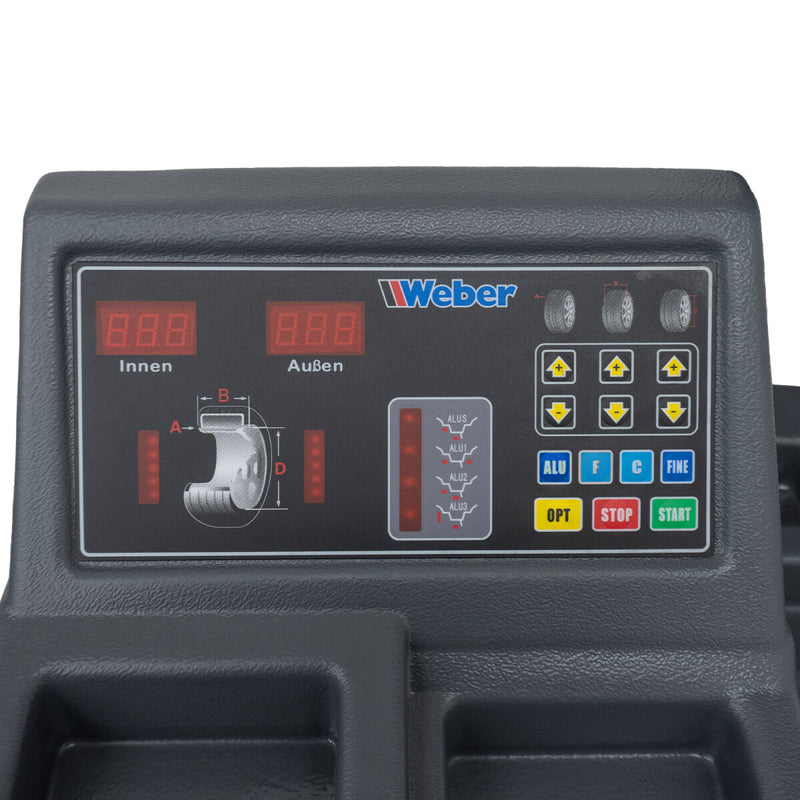

- 4 aluminum wheel programs and one steel wheel program
- Automatic balancing process with wheel braking
- Integrated software for self-testing and calibration
- Optimization function for weight display <5 g

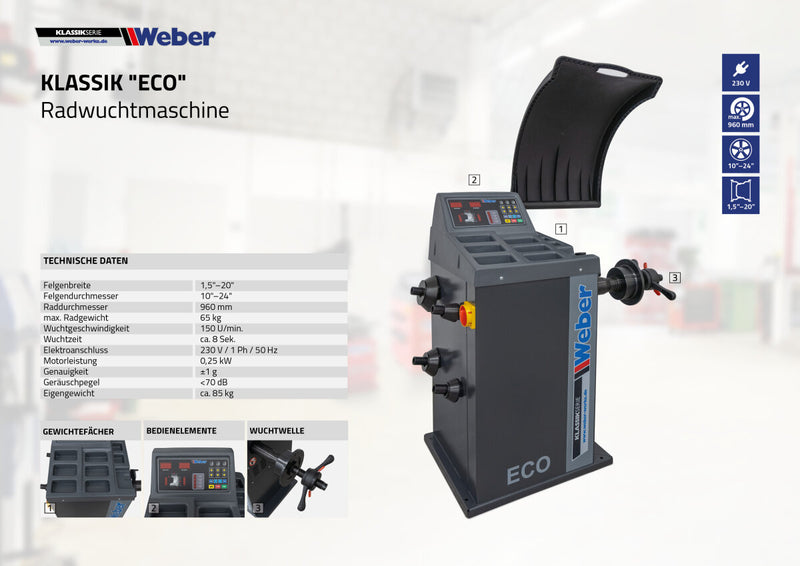

Technical data – Classic wheel balancer "ECO" |
|
| Rim diameter | 10–24" |
| max. wheel weight | 65 kg |
| noise level | <70 dB |
| Engine power | 0.25 kW |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Dead weight | approx. 85 kg |
| Rim width | 1.5"–20" |
| Wheel diameter | 960 mm |
| Impact velocity | 150 rpm. |
| Balancing time | approx. 8 sec. |
| accuracy | ± 1 g |
| Diameter of balancing shaft | 36 mm |

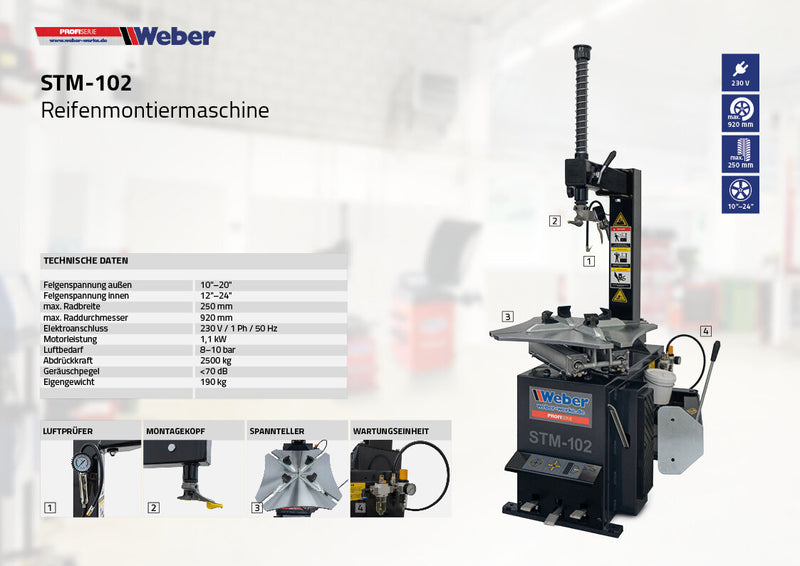

Technical specifications – Tire mounting machine STM-102 |
|
| Rim tension (outer) | 10"–20" |
| Inner rim tension | 12"–24" |
| max. wheel width | 250 mm |
| max. wheel diameter | 920 mm |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Engine power | 1.1 kW |

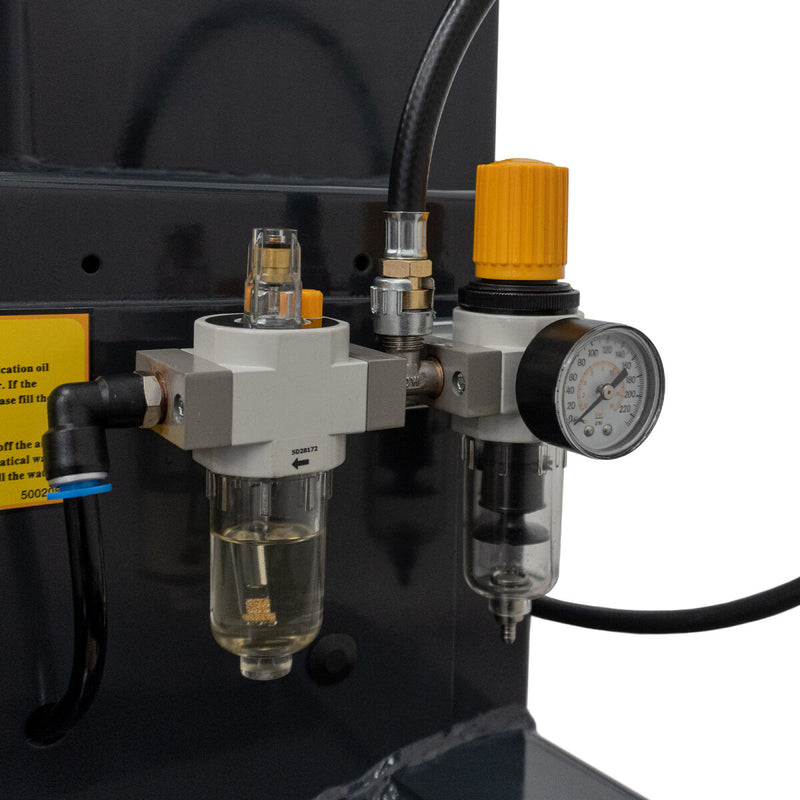

| Air requirements | 8–10 bar |
| Push-off force | 2500 kg |
| noise level | <70 dB |
| Dead weight | 190 kg |
