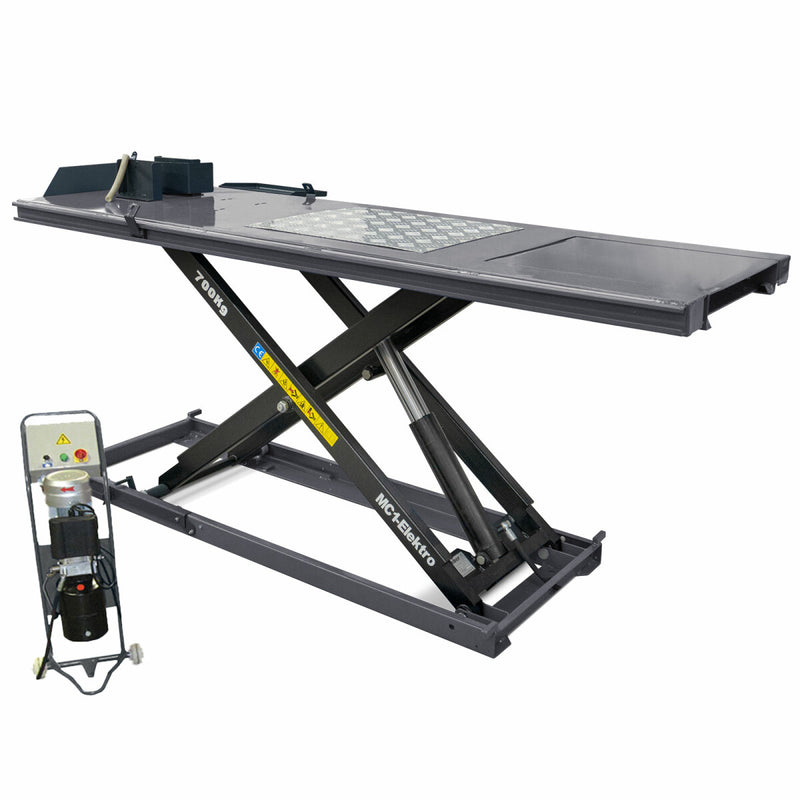

Weber Expert MC1 Series Electric Motorcycle Lift
Professional motorcycle lift, expandable to a quad and lawn tractor lift with 700 kg load capacity and 230 V electric unit.
Professional motorcycle lift, expandable to a quad and lawn tractor lift
Our versatile MC1-Electric motorcycle lift from our Expert series is ideal for use in small and large workshops as well as for private use. Thanks to its compact design and numerous individually adjustable attachments, the MC1-Electric motorcycle lift offers exceptional flexibility. With the optional quad, ATV, and lawn tractor kit, which increases the lift's width to 1303 mm, the lift's functionality can be further expanded to include lifting and lowering quads and small tractors. Numerous safety features ensure optimal protection for the lift, the motorcycle, and the operator during all types of work. Despite its robust 700 kg lifting capacity, the MC1-Electric is capable of handling heavy motorcycles while requiring minimal maintenance and wear, thus minimizing potential follow-up costs.
- Raising and lowering via control panel
- extendable and foldable loading ramp
- adjustable wheel holder
- Low maintenance and wear, therefore low follow-up costs
- Foldable and removable mounting platform for removing and installing the wheels
- Corrugated metal insert for secure positioning of the motorcycle and to prevent scratching of the stage.
- Lashing eyes and screw tray are adjustable
- mechanical safety latches
- Expandable to a quad bike and lawn tractor stage via optional ramps
- Permissible load capacity 700 kg, the structure of the lifting platform was successfully tested dynamically with a load of 115% of the permissible total weight and statically with 150% of the permissible total weight.

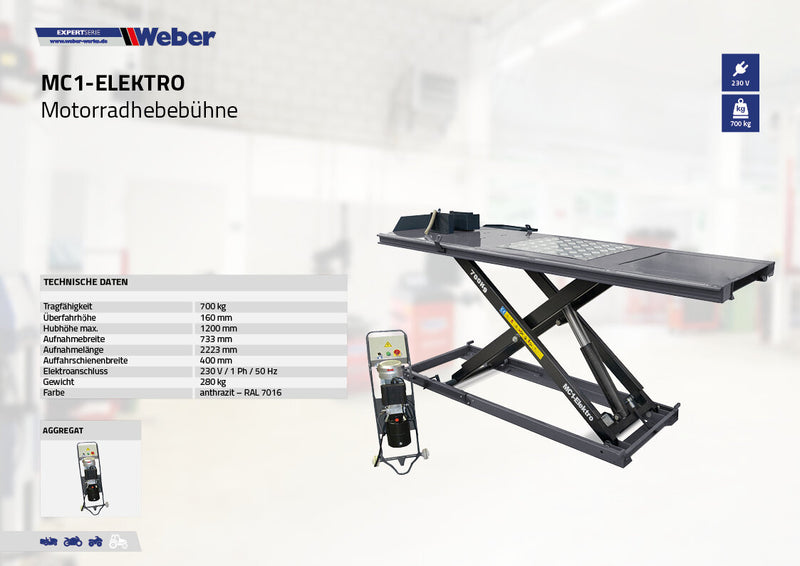

Technical data |
|
| Clearance height | 160 mm |
| Load capacity | 700 kg |
| Recording width | 733 mm |
| Recording length | 2223 mm |
| Maximum lifting height. | 1200 mm |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Ramp width | 400 mm |
| Color | anthracite – RAL 7016 |
| Weight | 280 kg |
Possible application area
* The applications for our lifting platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Weber GmbH accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. .
