Weber Expert MC-1000E motorcycle lift
Professional motorcycle lift with a 1000 kg lifting capacity and 230 V electric power unit. Thanks to optional extension kits, it can also be used for quads, lawn tractors, ATVs, UTVs and side-by-side vehicles.
Professional motorcycle lift, expandable to accommodate quads, side-by-sides, ATVs and lawn tractors
The Weber MC-1000E is an extremely robust and versatile motorcycle lift that makes working on motorcycles comfortable and convenient, both in workshops and for private use. Thanks to its high load capacity of up to 1000 kg, it is also ideally suited for heavier models. The motorcycle lift is easy to operate and can be raised and lowered with the push of a button. The removable ramp facilitates access, and the removable work platform simplifies wheel removal and installation. Furthermore, the motorcycle lift is extremely space-saving and, thanks to optional extension kits, can also be used for working on lawn tractors, quads, side-by-sides, and ATVs.
- Raising and lowering at the touch of a button
- removable loading ramp
- Low maintenance and wear, therefore low follow-up costs

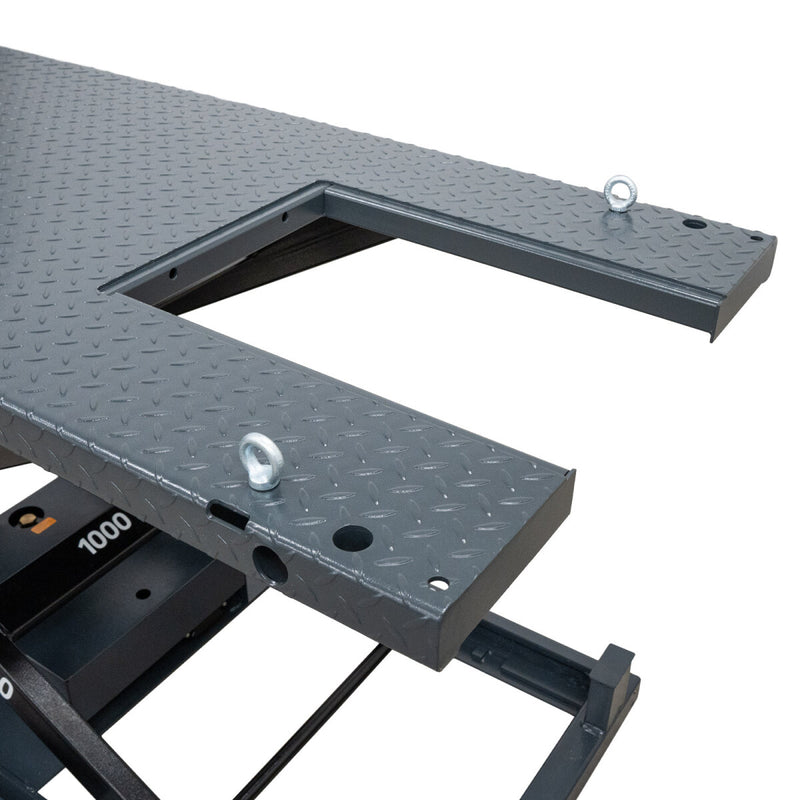

- Removable mounting platform for removing and installing the wheels
- fixed lashing eyes
- small space requirement

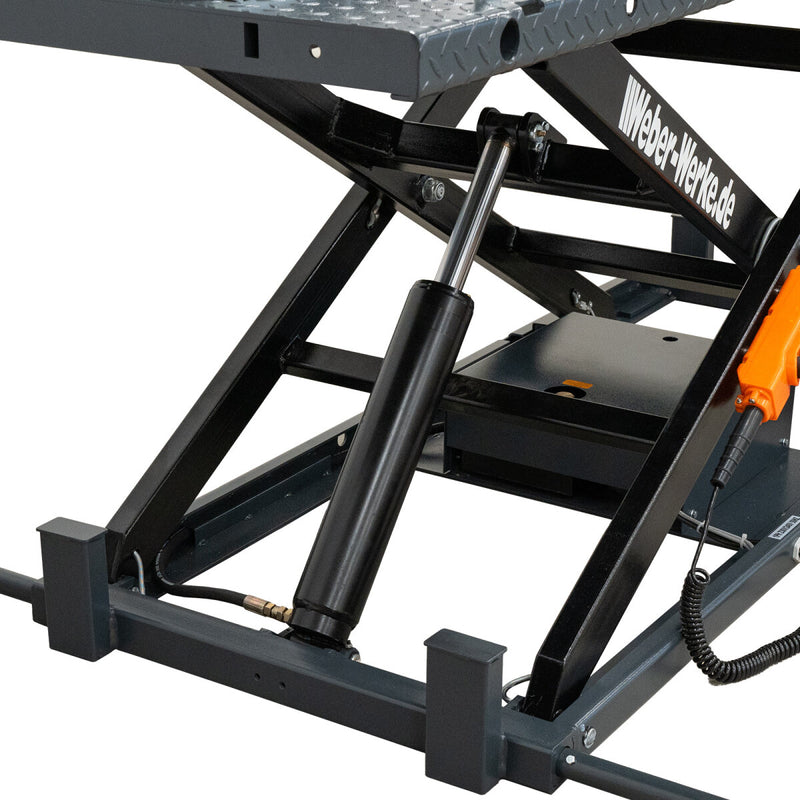

- Electromechanically operated safety latches
- Expandable with optional ramps to accommodate quads, side-by-sides, ATVs and lawn tractors
- Permissible load capacity 1000 kg, the structure of the lifting platform was successfully tested dynamically with a load of 115% of the permissible total weight and statically with 150% of the permissible total weight.

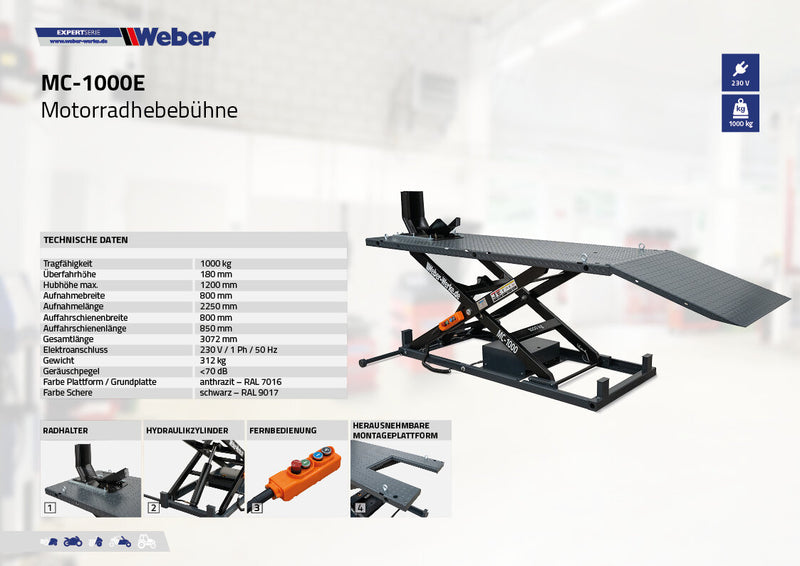

Technical data |
|
| Clearance height | 180 mm |
| Load capacity | 1000 kg |
| Recording width | 800 mm |
| Recording length | 2250 mm |
| Maximum lifting height. | 1200 mm |
| noise level | <70 dB |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Dead weight | 312 kg |
| Ramp width | 800 mm |
| Paint Scissors | black – RAL 9017 |
| Total length | 3072 mm |
| ramp length | 850 mm |
| Color of platform/base plate | anthracite – RAL 7016 |
Possible application area
* The applications for our lifting platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Weber GmbH accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. .
