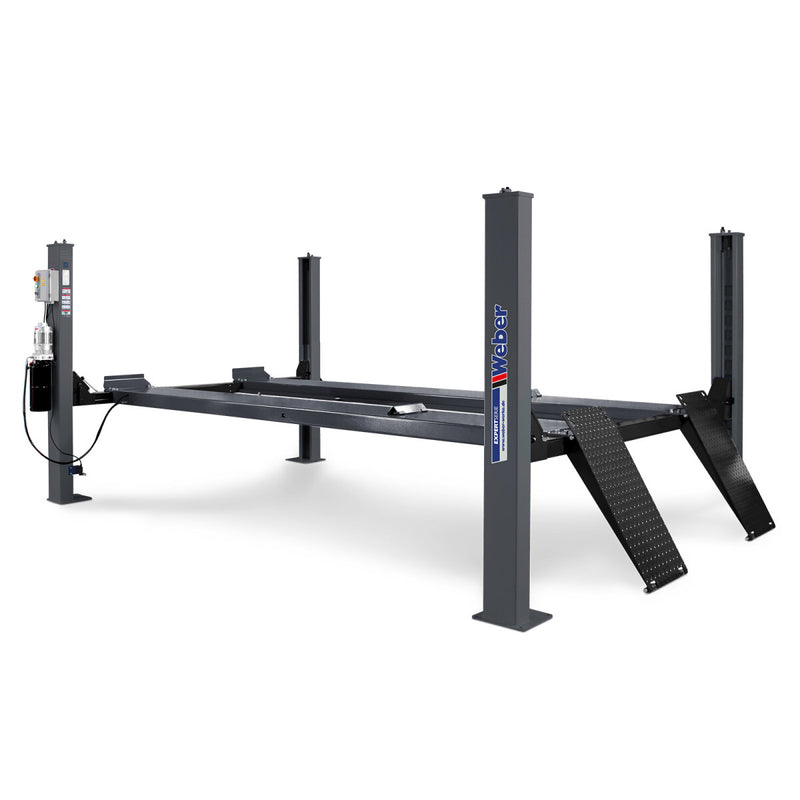

4-post lift Weber Expert series car lift 4.2
4-post lift with 4200 kg lifting capacity, low approach height and long ramps.
The Weber 4-post lift Autolift 4.2 from the Expert series is a true all-rounder in the workshop. With a lifting capacity of 4200 kg, it is not only suitable for lifting cars and vans, but can even easily lift small agricultural machinery. The low drive-on height and long ramps also make it ideal for accommodating longer vehicles. Pneumatic release of the safety latches allows for fully automatic lowering of the lift. Since the lift is finely adjustable and levelable, it can even be used for wheel alignment with optional accessories.
- Suitable for cars, vans and light trucks
- Low entry height and long ramps for lowered vehicles
- finely adjustable and levelable for wheel alignment
- Safety locking mechanism and release latches
- automatic rope break and slack rope protection
- Pressure relief valve and pipe rupture safety valve
- Operation via push-button switch with deadman system
- Signal tone protection from the CE stop
- hydraulic pull cylinder with stable cable pull yoke
- fast lifting and lowering speed
- Fixed roll-off protection at the front, mobile and automatic roll-off protection at the rear
- pneumatic unlocking of the safety latches
- Movable rails for maximum flexibility while working

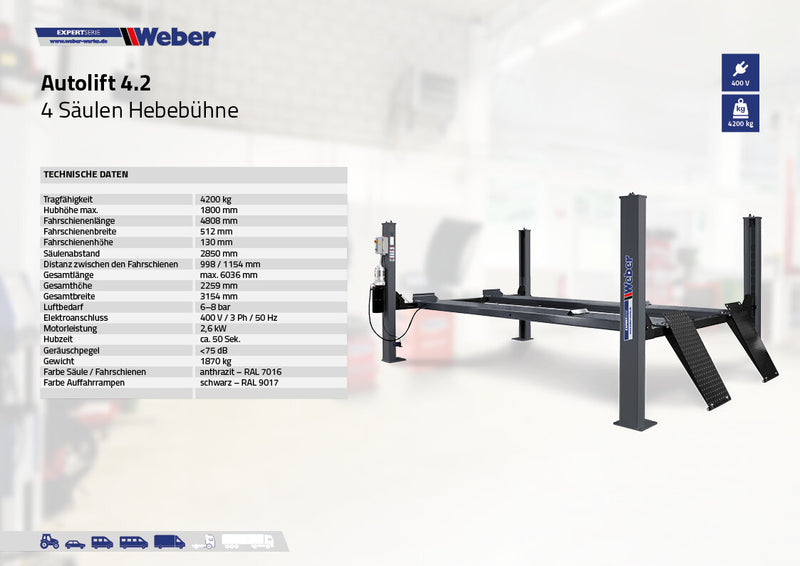

Technical data |
|
| Load capacity | 4200 kg |
| Track width | 512 mm |
| Maximum lifting height. | 1800 mm |
| Air requirements | 6–8 bar |
| Column spacing | 2850 mm |
| noise level | <75 dB |
| Engine power | 2.6 kW |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Lift time | approx. 50 sec. |
| Track length | 4808 mm |
| Track height | 130 mm |
| Distance between the rails | 998 / 1154 mm |
| Total length | max. 6036 mm |
| Total height | 2259 mm |
| Total width | 3154 mm |
| Color of column / driving rails | anthracite – RAL 7016 |
| Color of loading ramps | black – RAL 9017 |
| Weight | 1870 kg |
Possible application area
* The applications for our lifting platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Weber GmbH accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. .
