Weber Classic Series QSD-4000A 2-post lift including armature and oil
Robust Weber QSD-4000A 2-post lift with a 4000 kg lifting capacity – now available as a complete package including 10 liters of HLP 32 hydraulic oil and heavy-duty anchors. Ideal for workshops, garages, and professional applications.
Electro-hydraulic 2-post lift with asymmetrical support arms for cars and small vans

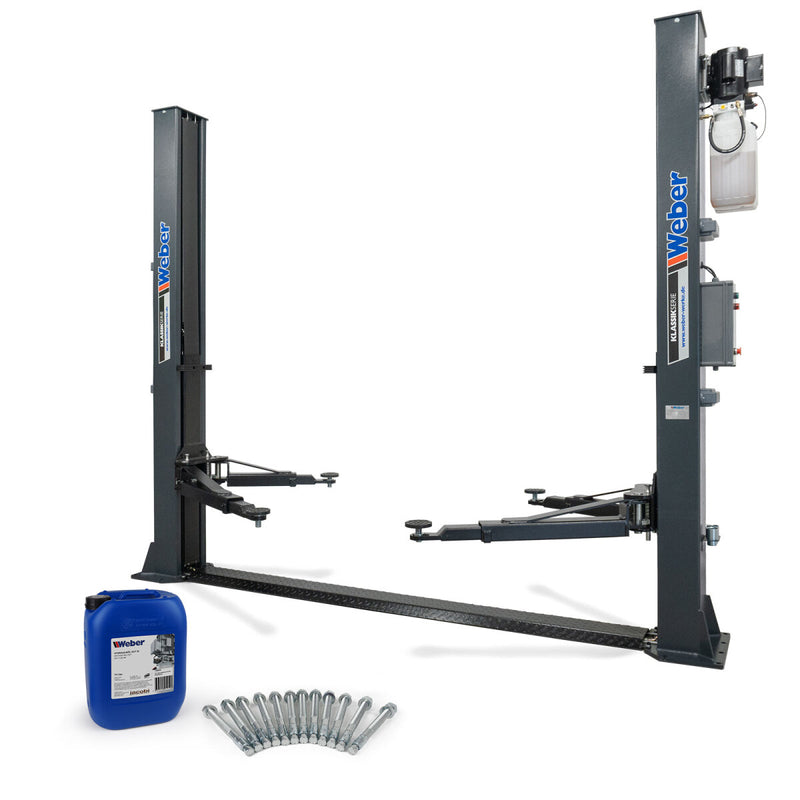

The Weber QSD-4000A from the Classic series is a proven 2-post lift with a 4000 kg lifting capacity, distinguished by its robust construction, flexible mounting options, and high level of safety. This exclusive offer includes the lift, 10 liters of HLP 32 hydraulic oil, and a set of heavy-duty anchors. This provides everything you need for installation and immediate operation – without any additional costs for accessories.
Additional benefits of the offer
- 10 liters of HLP 32 hydraulic oil – high-quality hydraulic oil for smooth operation
- Heavy-duty anchor set – for secure floor mounting of the lifting platform
- Ready to use immediately – no additional purchases necessary, ready to go right away.
- Time and cost savings – complete package at a special price
- Raising and lowering via push button for fine adjustment of the lifting height

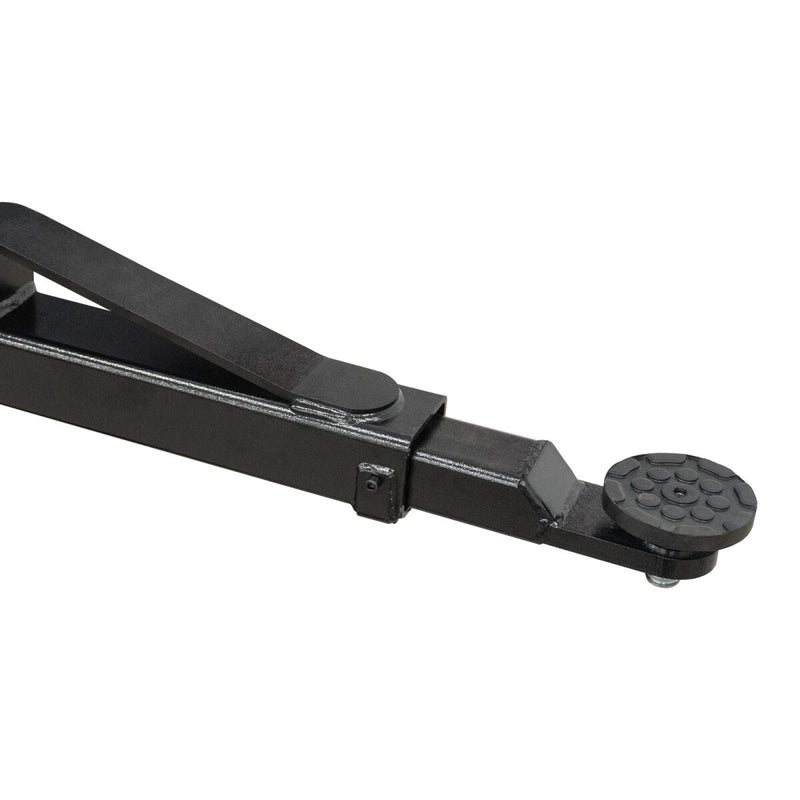

- 2-part, telescopic support arms for accommodating various vehicles
- Column cover in both lifting columns to protect against contamination

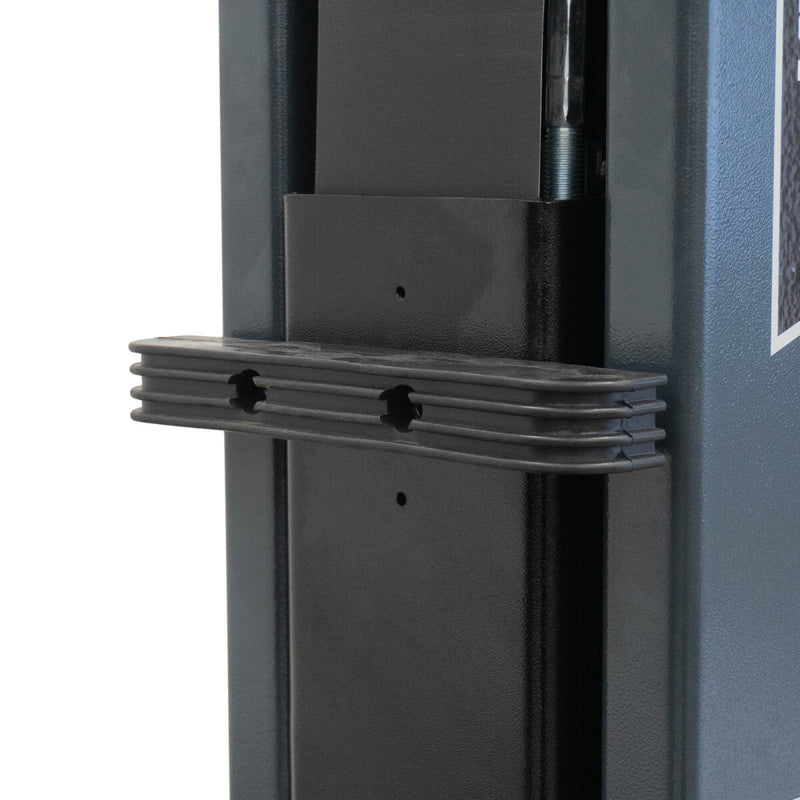

- Door protection rubbers on both pillars
- Asymmetrical support arms for large door opening angles
- Support plate with rubber pad, height adjustable by turning

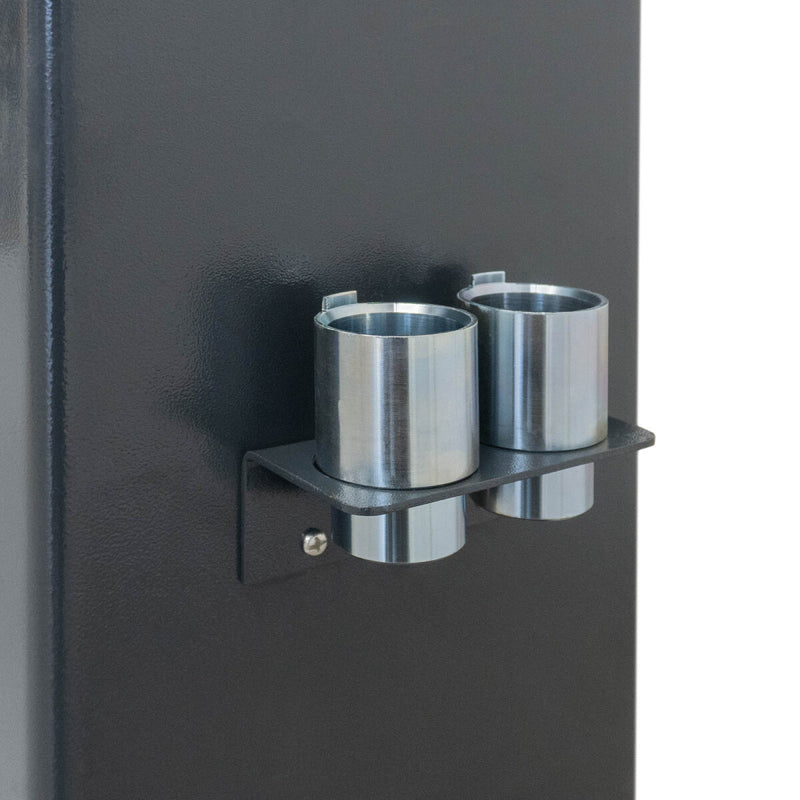

- A set of transporter mounts (4 pieces, each 50 mm) is included in the scope of delivery.
- Low maintenance and wear, therefore low follow-up costs

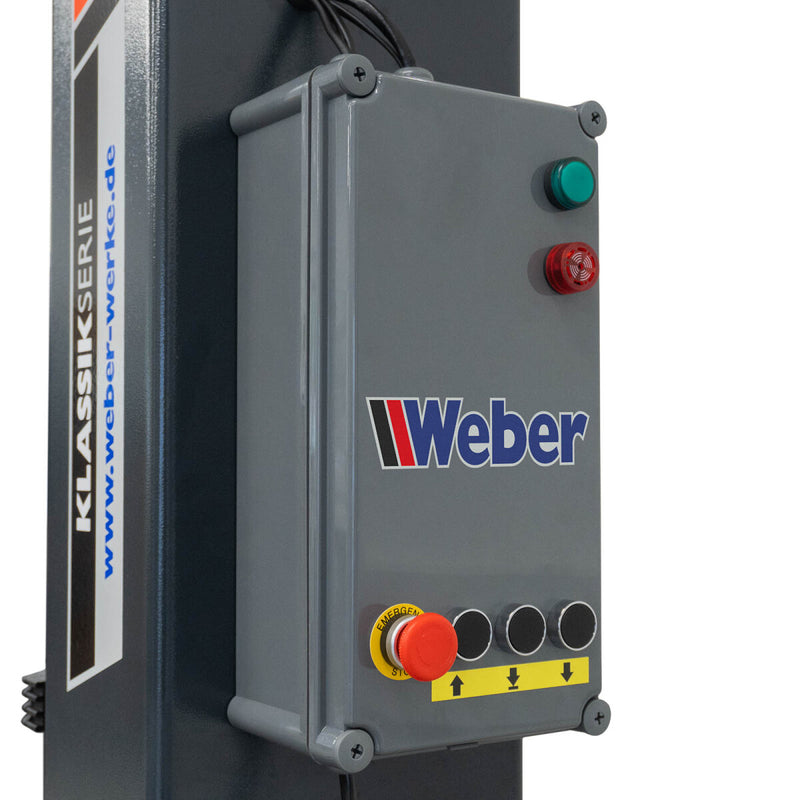

- Easy handling thanks to 24-volt safety push-button control (dead man's control)
- Ideal recording area for cars and small vans
- low swivel height, only 85 mm

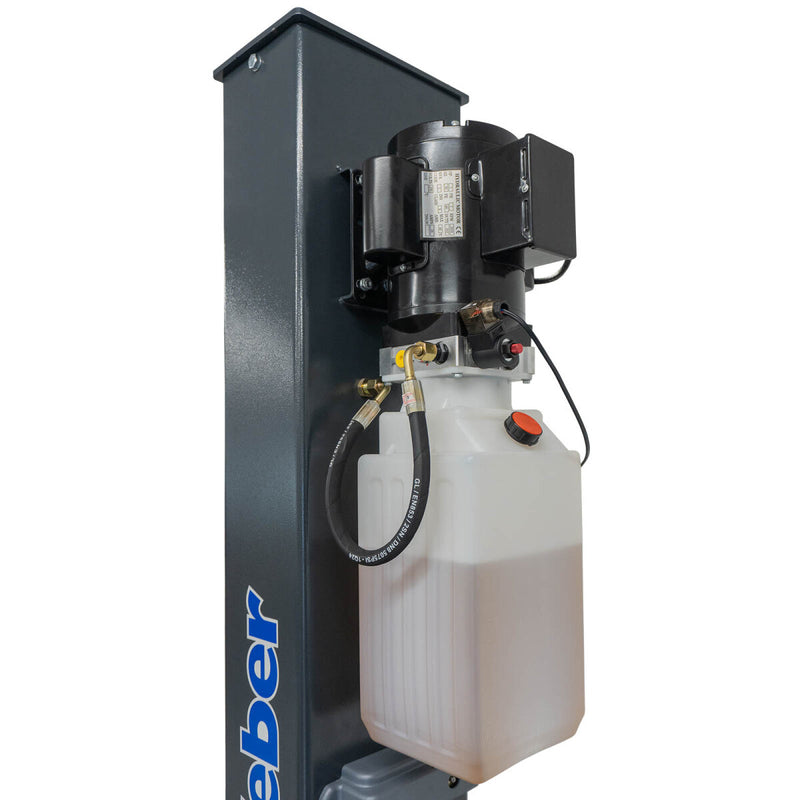

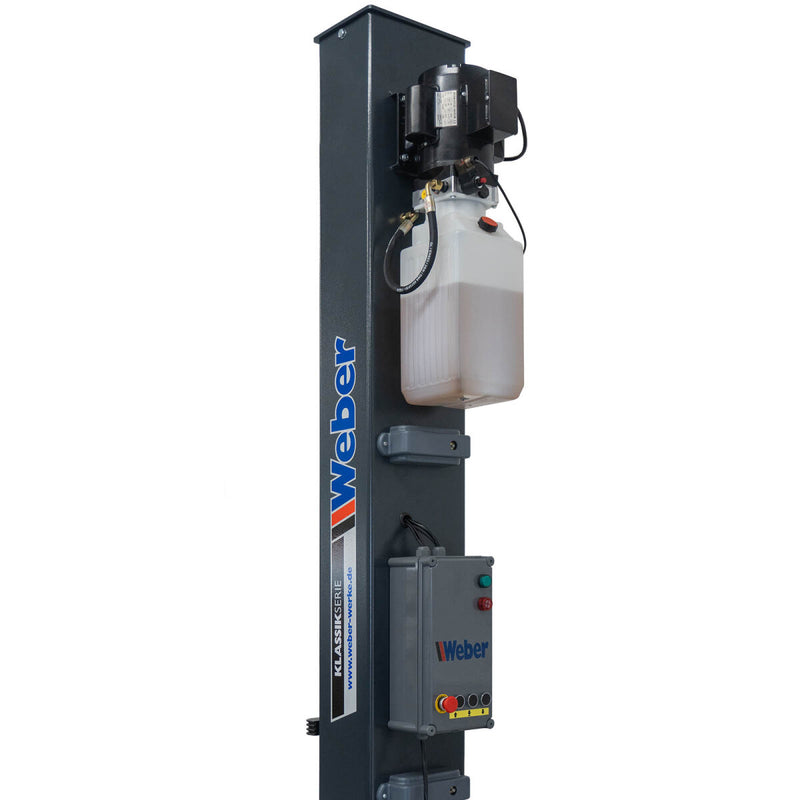

- Simple assembly, as many components (motor, control box, hose on steering column, etc.) are already pre-assembled.
- wide passage, also suitable for small vans

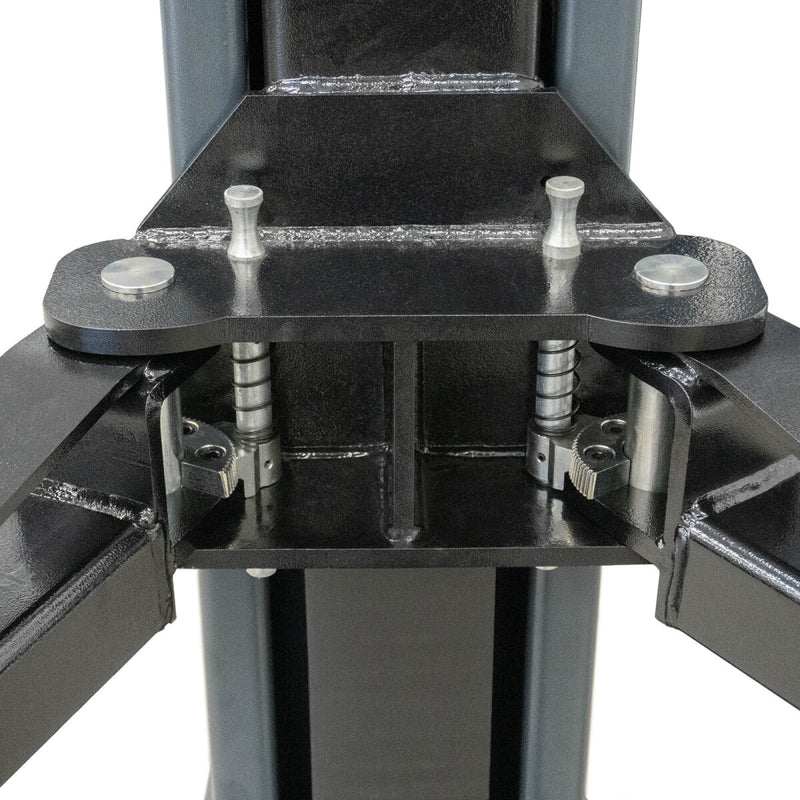

- Automatic support arm locking, manual unlocking possible
- Upright lifting cylinders in both columns; the hydraulic cylinders are sealed within the cylinder tube, thus eliminating the risk of damage (contamination, grinding or welding spatter, etc.) to the piston rods.
- Multiple safety devices, overload valve, pipe rupture protection and mechanical safety latches
- Electromechanically operated safety latches
- CE-approved stop safety limit switch (pinch protection) and electronic stroke limitation
- Permissible load capacity 4000 kg, the structure of the lifting platform was successfully tested dynamically with a load of 115% of the permissible total weight and statically with 150% of the permissible total weight.

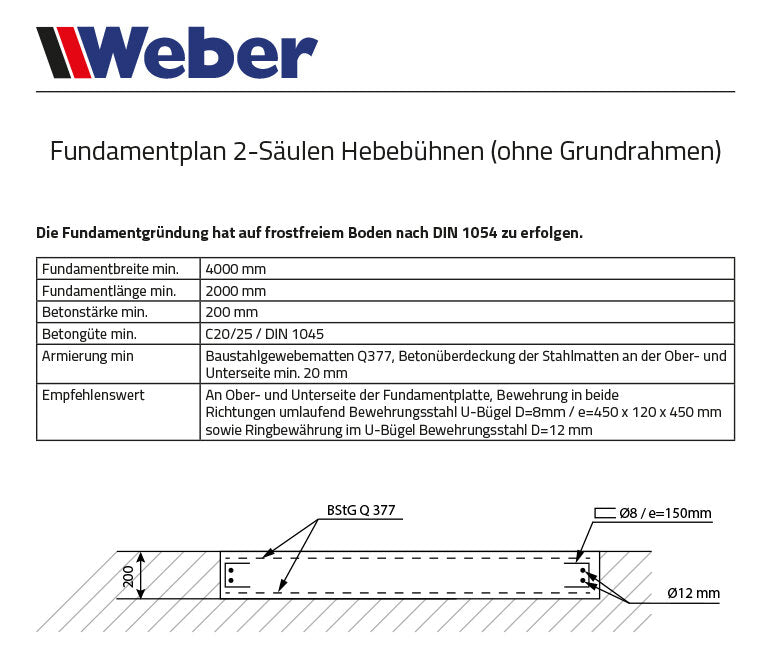

- Floor requirements according to current (in Germany permissible) structural analysis: concrete C20/25 DIN1045:2001-D7, double reinforced, with a minimum dimension of 4000 x 2000 x 200 mm.

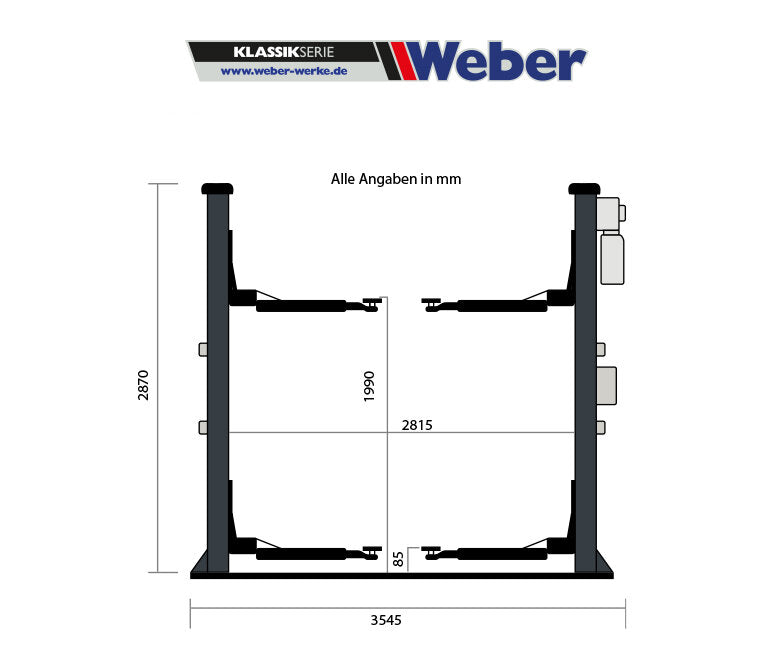

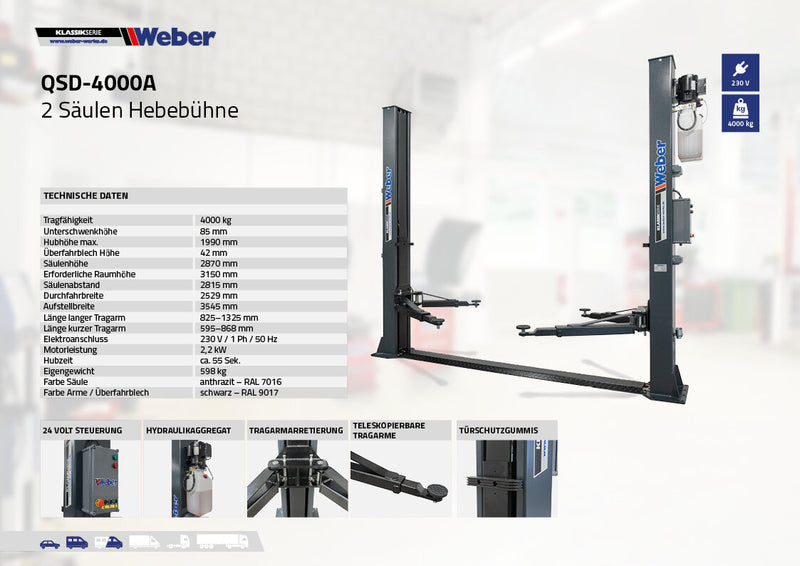

Technical data |
|
| Load capacity | 4000 kg |
| Underswing height | 85 mm |
| Maximum lifting height. | 1990 mm |
| Column height | 2870 mm |
| Required ceiling height | 3150 mm |
| Column spacing | 2815 mm |
| Passage width | 2529 mm |
| Installation width | 3545 mm |
| Length of long support arm | 825–1325 mm |
| Length of short support arm | 595–868 mm |
| Engine power | 2.2 kW |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Lift time | approx. 55 sec. |
| Dead weight | 598 kg |
| Color column | anthracite – RAL 7016 |
| Drive-over plate height | 42 mm |
| Color Arms / Drive-over Plate | black – RAL 9017 |
Possible application area
* The applications for our lifting platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Weber GmbH accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. .
