Mobile short-stroke scissor lift Weber Profi Series KHB-1000E incl. oil
Original price
20,925.00 kr
-
Original price
20,925.00 kr
Original price
20,925.00 kr
20,925.00 kr
-
20,925.00 kr
Current price
20,925.00 kr

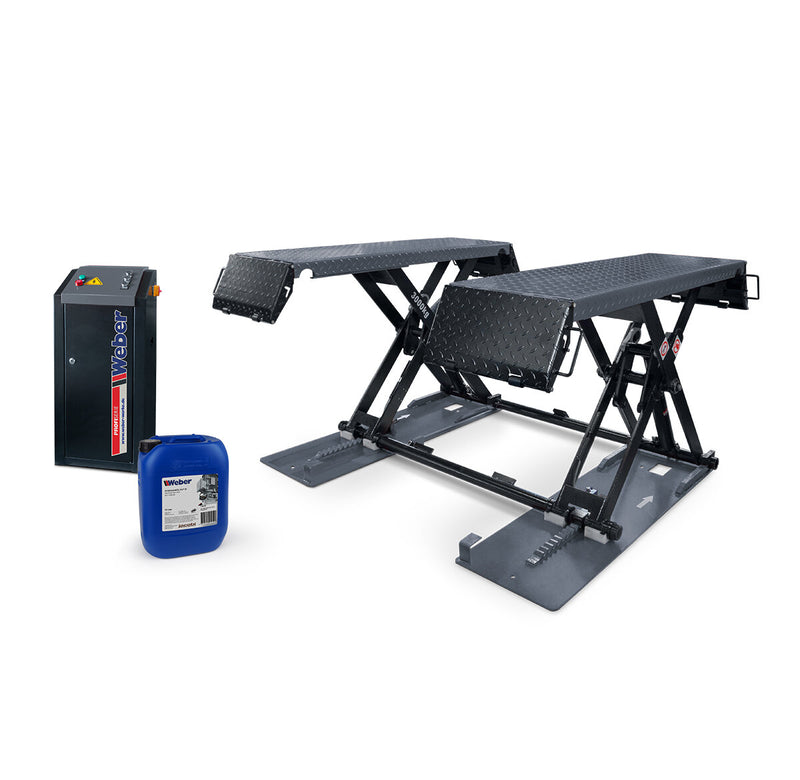

Mobile short-stroke scissor lift for cars and small vans, including 10 liters of hydraulic oil. Ideally suited for tire service and bodywork. The lift is partially pre-assembled, allowing for quick and easy setup.
- Fully automatic lifting and lowering at the touch of a button (no air connection required)

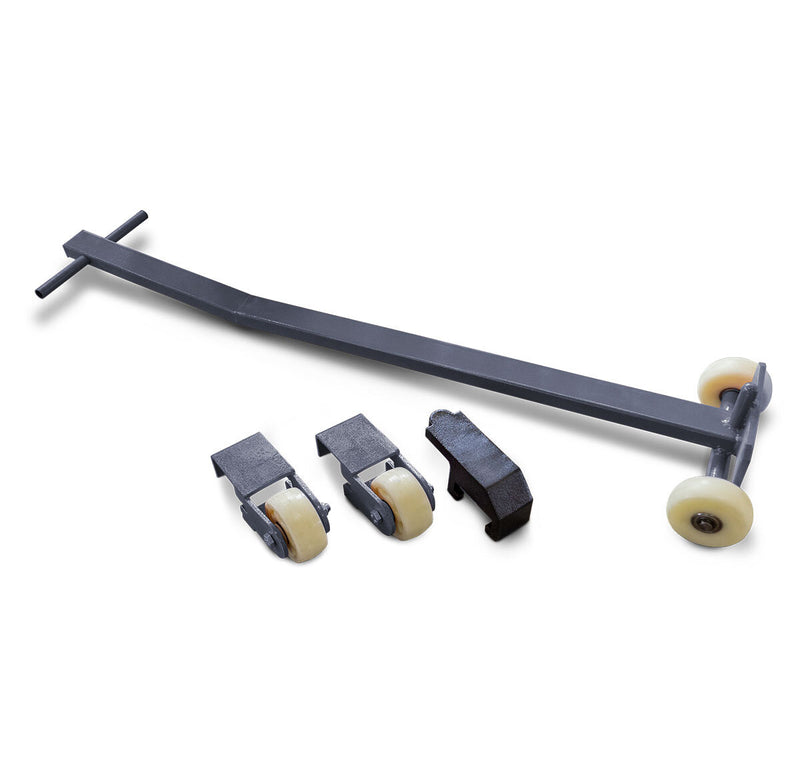

- The stage comes with a mobility kit and can therefore be moved.
- Deflection on the hydraulic cylinder for powerful lifting in the lower range
- Four rubber pads for attaching to the vehicle are also included in the scope of delivery.
- mechanical safety latches that are electrically operated
- Low maintenance and wear, therefore low follow-up costs

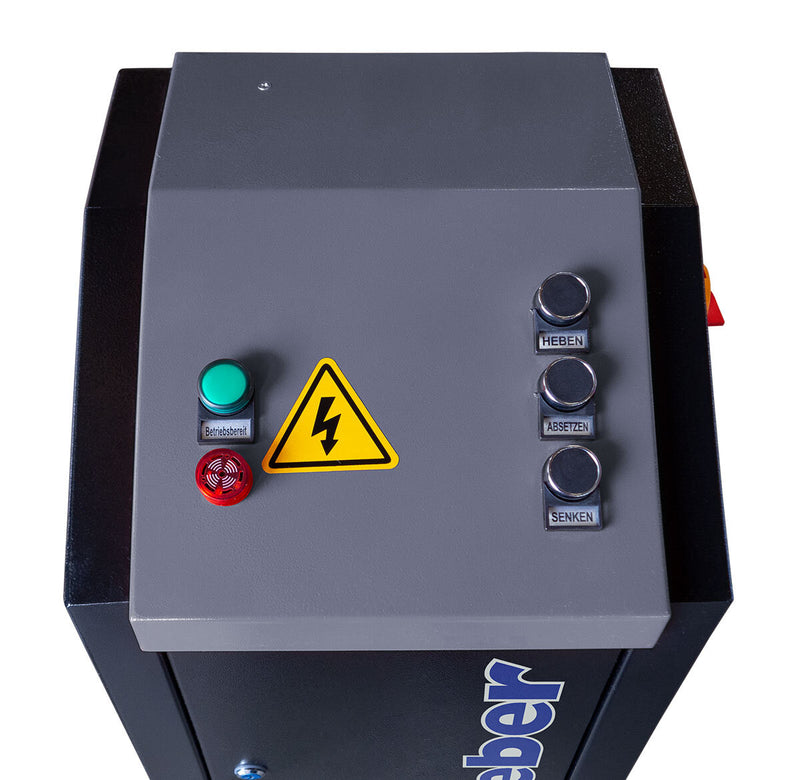

- Easy handling thanks to 24-volt safety push-button control (dead man's control)
- Ideal recording area for cars and small vans
- Low clearance height, only 110 mm
- Complete freedom of movement as there are no obstructing pillars.
- small space requirement
- electronic stroke limitation via limit switches
- Permissible load capacity 3000 kg, the structure of the lifting platform was successfully tested dynamically with a load of 115% of the permissible total weight and statically with 150% of the permissible total weight.

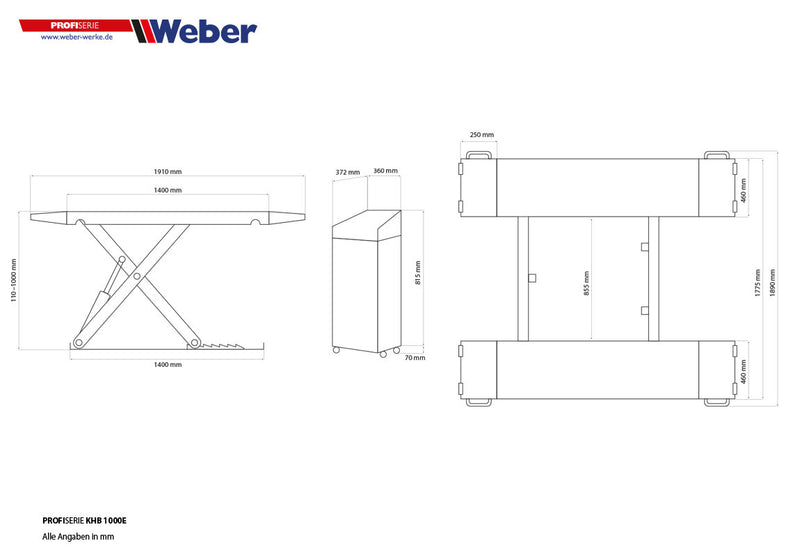

Technical data |
|
| Clearance height | 110 mm |
| Load capacity | 3000 kg |
| Recording width | 1775 mm |
| Recording length | 1400–1910 mm |
| Track width | 460 mm |
| Track spacing | 855 mm |
| Maximum lifting height. | 1000 mm |
| Air requirements | not needed |
| Color of rails/frame | anthracite – RAL 7016 |
| Paint Scissors / Ramps | black – RAL 9017 |
| Installation width | 1890 mm |
| Engine power | 2.2 kW |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Lift time | approx. 45 sec. |
| Dead weight | 520 kg |
Possible application area
* The applications for our lifting platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Weber GmbH accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. .
