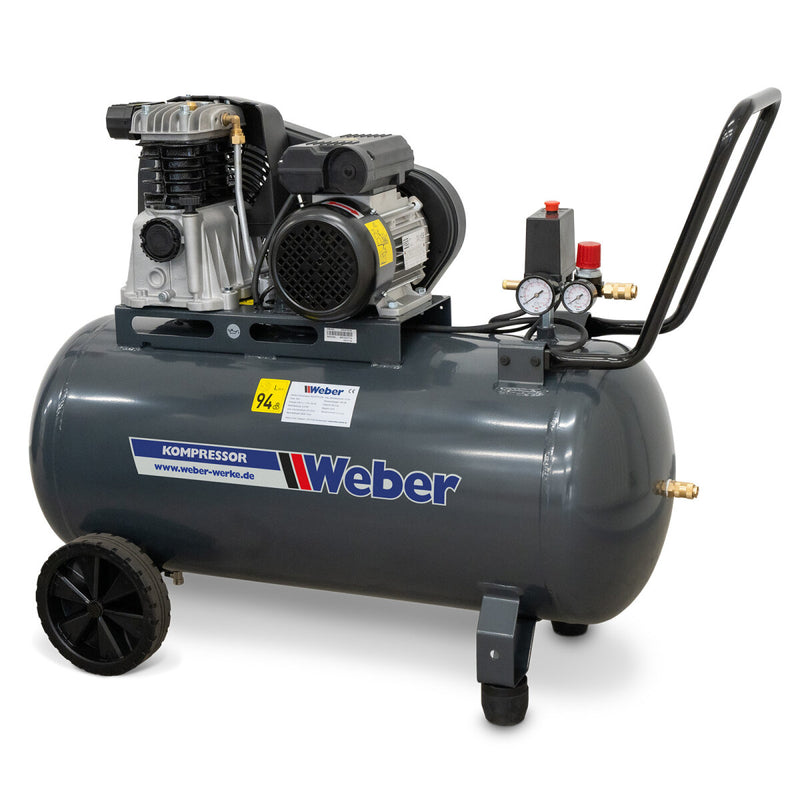

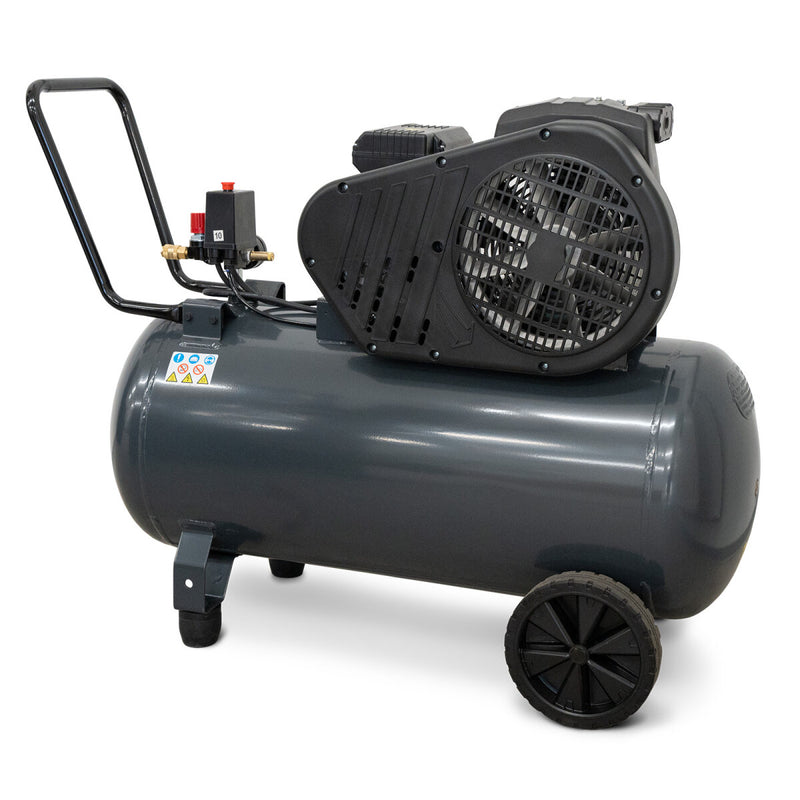

Workshop compressor 230 V / 10 bar / 100 l tank
Workshop compressor with 10 bar operating pressure, 100 liter tank and 230 V electrical connection.
Workshop compressor 230 V / 10 bar / 100 l tank

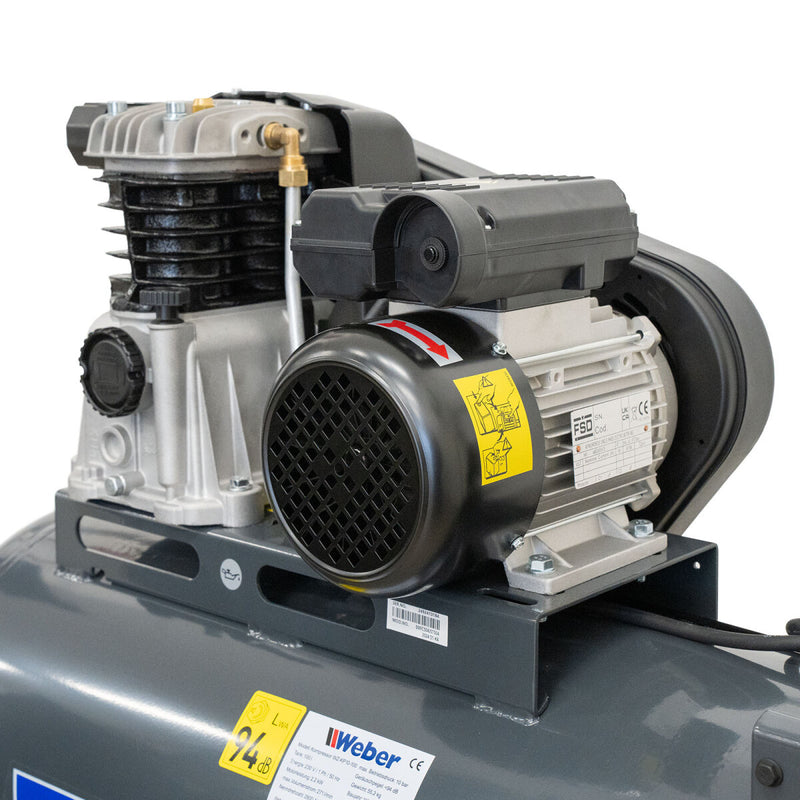

The robust Weber workshop compressor with a 10 bar operating pressure and a 100-liter tank is the ideal tool for demanding tasks requiring compressed air. The oil-lubricated, 2-cylinder unit with V-belt drive ensures quiet operation and reliable, powerful performance. Thanks to the adjustable pressure regulator, setting and monitoring the working pressure is very easy. The tank and working pressure gauges display the current pressure, while the pressure switch automatically regulates the maximum tank pressure. Two air couplings allow multiple tools to be connected to the compressor simultaneously. A TÜV-certified safety valve and a condensate drain plug on the tank ensure the necessary safety. The practical carrying handle and sturdy wheels make the compressor easy to move. The double base with rubber buffers provides a secure footing.
- V-belt driven compressor
- powerful and robust
- practical carrying handle
- high work pressure

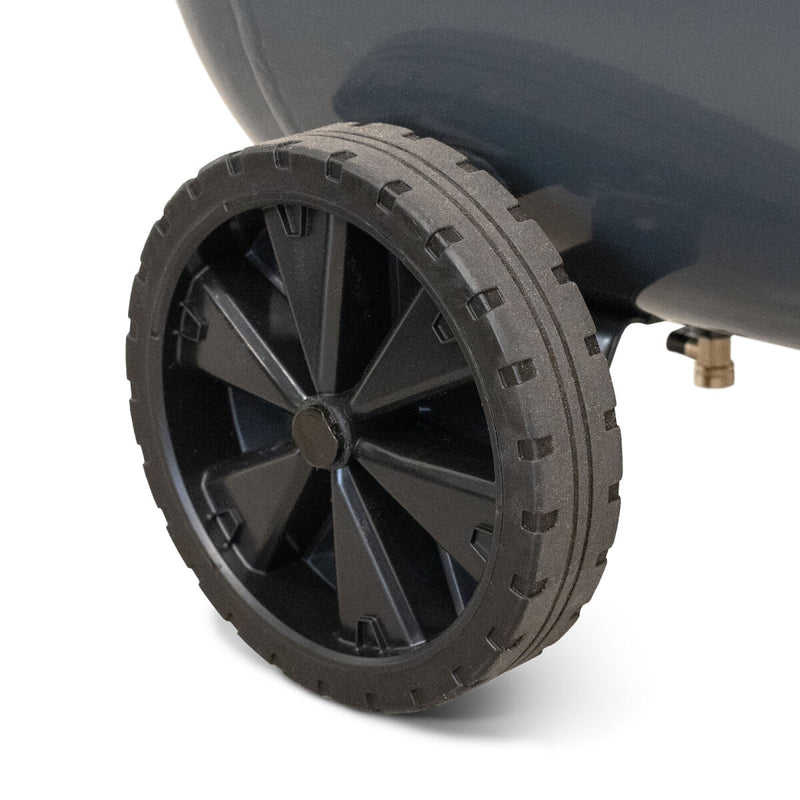

- Mobile thanks to sturdy plastic wheels
- Double base with vibration damper for secure footing
- Ready for connection, equipped with CE safety plug

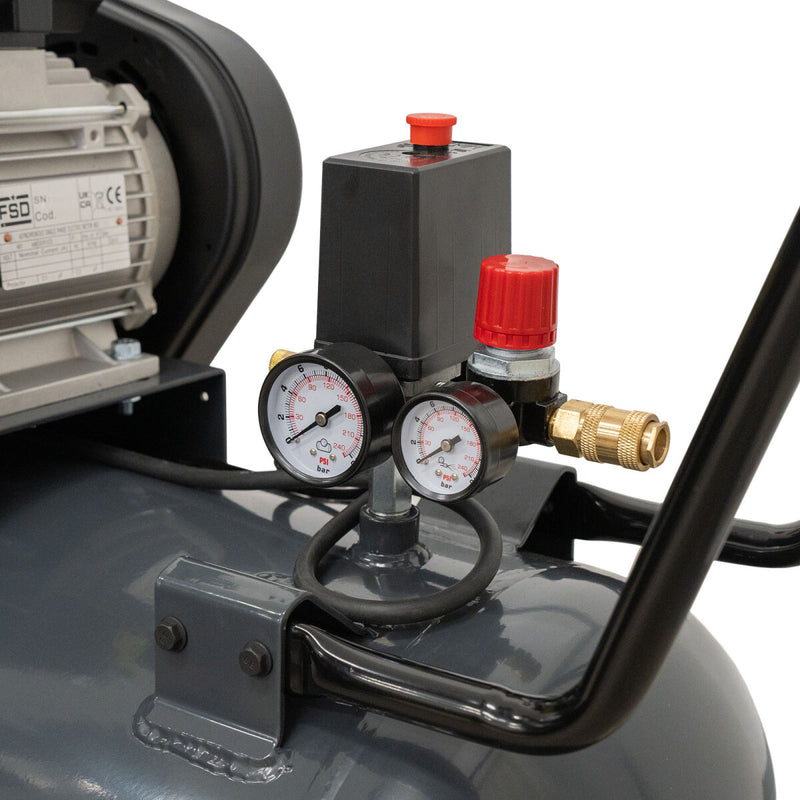

- with adjustable pressure reducer and two pressure gauges

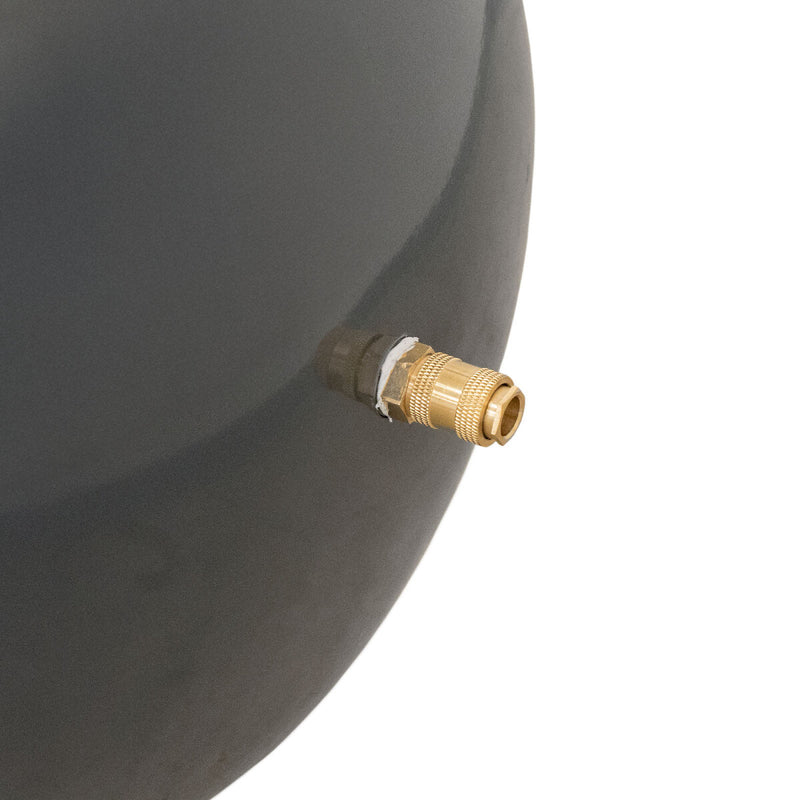

- Ball valve and condensate drain valve on the tank
- TÜV-certified safety valve
- Particularly quiet thanks to belt drive
- Additional compressors and air dryers available on request

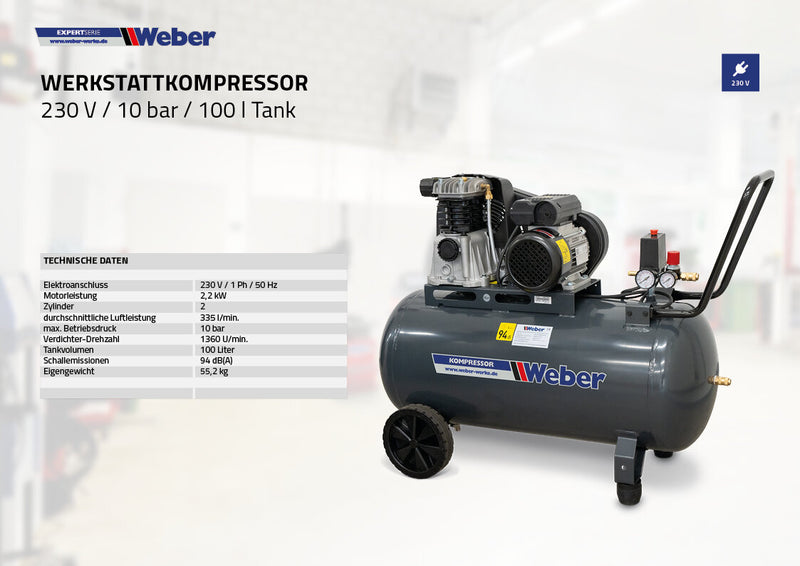

Technical data |
|
| Engine power | 2.2 kW |
| Tank capacity | 100 liters |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| max. operating pressure | 10 bar |
| Dead weight | 55.2 kg |
| cylinder | 2 |
| average air output | 335 l/min. |
| Compressor speed | 1360 rpm. |
| Noise emissions | 94 dB(A) |
