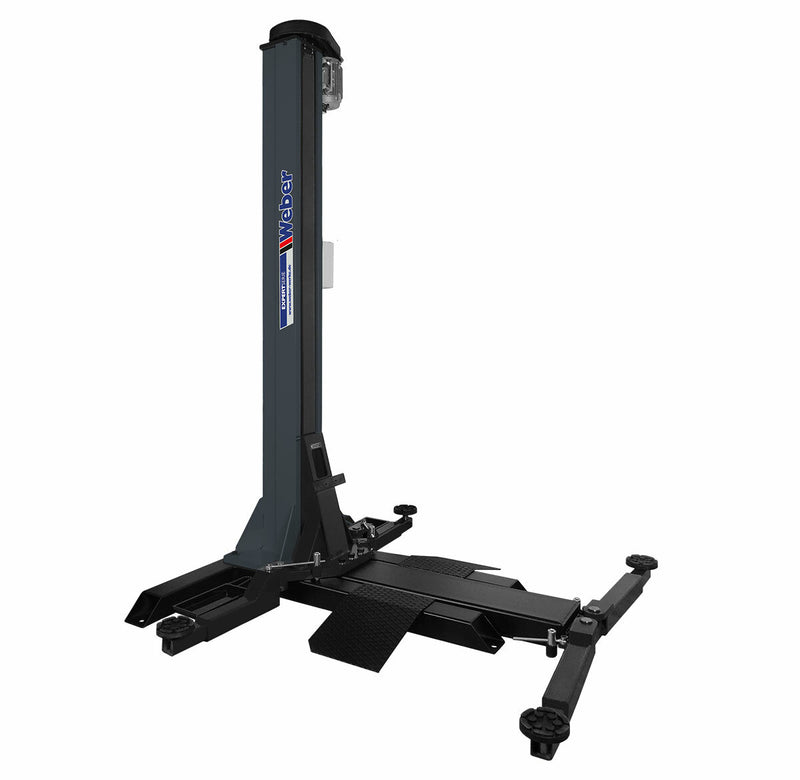

Electromechanical 1-post "spindle" lift with asymmetrical support arms and stable base frame for lifting cars and small vans - lifting capacity 2500 kg.

Electromechanical "spindle" 1-post lift for cars and small vans

With a spindle diameter of 45 mm, we use the largest spindles/loading nuts on the market , resulting in less friction and therefore less wear. Provided that installation and maintenance are carried out by an authorized service partner of Weber GmbH, we offer a 5-year warranty on the loading nut and spindle . Our hot-rolled column profiles and lifting spindles are manufactured in Germany and feature a slim lifting column design; they are also extremely robust and torsionally rigid. Simple design and robust technology combine to create a top-of-the-line lifting platform.

  • Slim lifting column design and robust technology thanks to our hot-rolled column profile
  • extremely solid and torsionally rigid
  • one of the most stable single-post lifts in this load capacity class

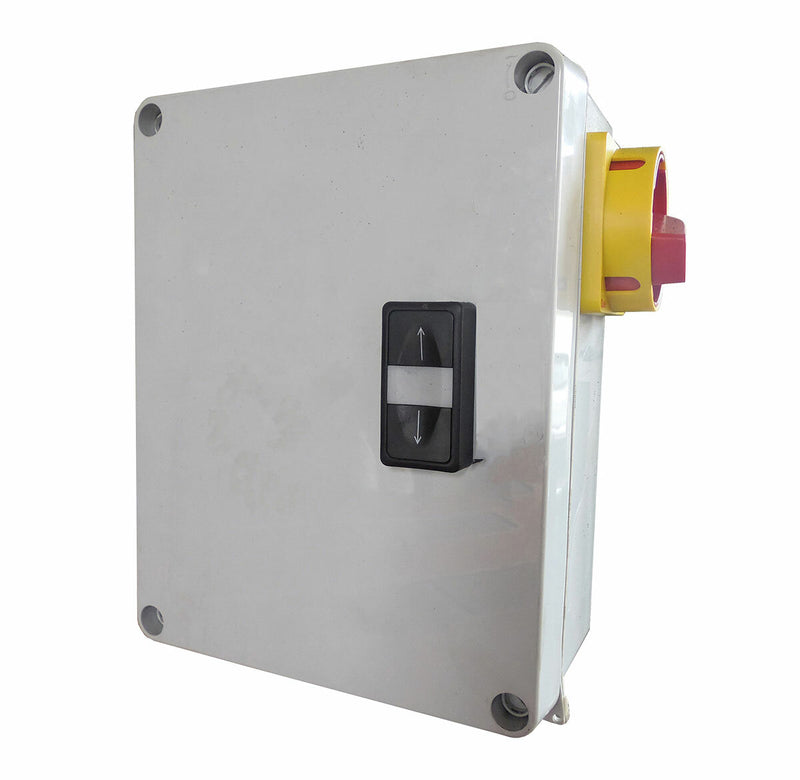

  • Raising and lowering via push button for fine adjustment of the lifting height
  • very low column height for installation in low rooms
  • A raised vehicle is perfectly accessible from three sides.
  • Vehicle doors on the side opposite the lifting column can be opened without restrictions.

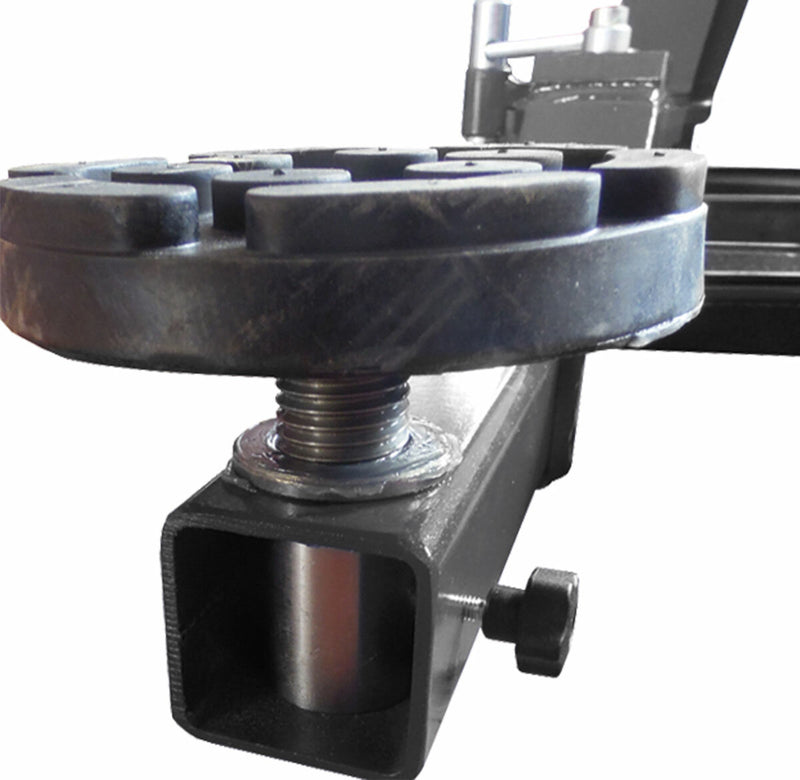

  • large tool storage areas on the rear support arms
  • The lifting table features durable ball bearings.
  • Automatic safety stop during lowering if an obstacle blocks the lifting table.

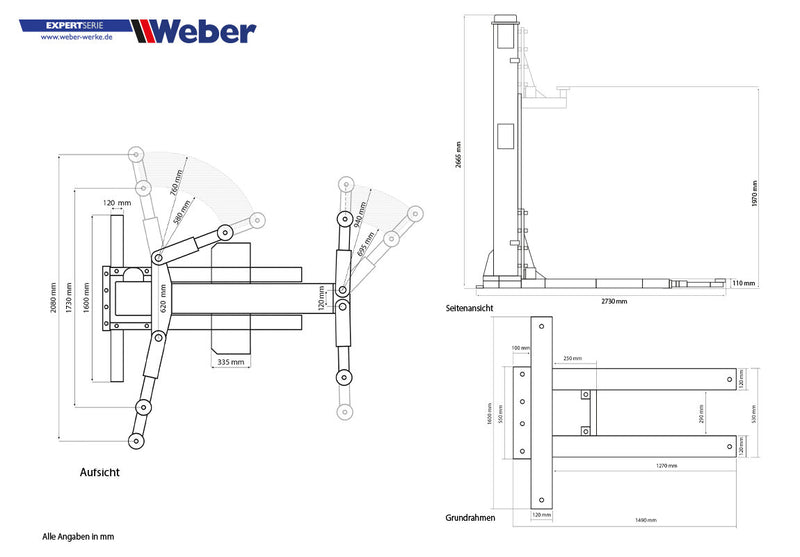

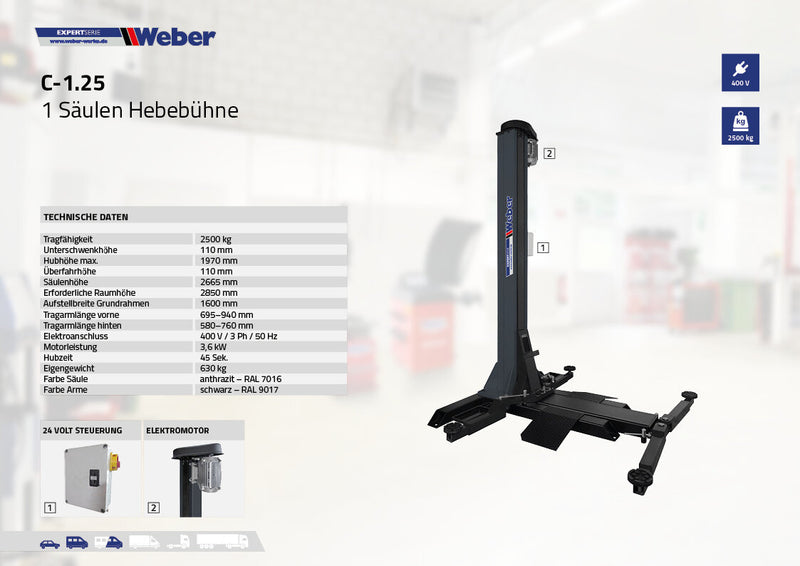

Technical Data
Clearance Height 110 mm
Load Capacity 2500 kg
Minimum lifting height 110 mm
Maximum lifting height 1970 mm
Column height 2665 mm
Required room height 2850 mm

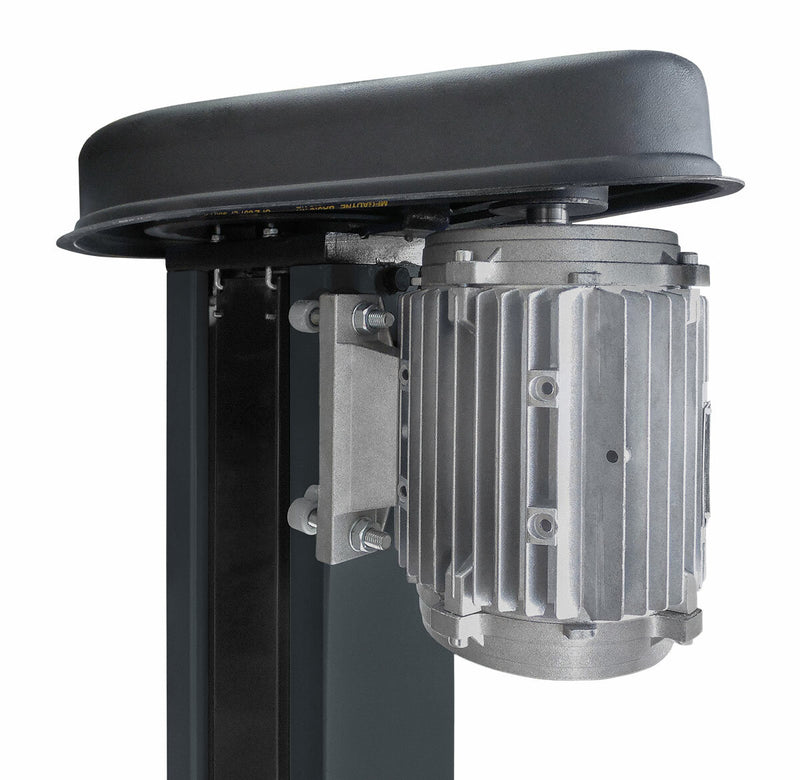

Motor power 3.6 kW
Electrical connection 400 V / 3 Ph / 50 Hz
Lifting time 45 sec.
Dead weight 630 kg
Column color anthracite – RAL 7016
Arm color Black – RAL 9017
Base frame width 1600 mm
Front support arm length 695–940 mm
Rear support arm length 580–760 mm

Possible Applications

* The application areas of our lifting platforms are very diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms shown are intended only as a guide and do not reflect the actual lifting capacity of our products. Weber GmbH accepts no liability for the possibility that all models of the corresponding vehicle class can be lifted. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you.

FAQ

Is it incl. or excl. VAT on the prices?

All prices are excl. VAT.

Is shipping included in the prices?

No, add the products to the shopping cart and enter the postal code to get the total price.

Can we pick up the product from you?

Yes, the warehouse is in Herleshausen. Otherwise, we have quite good prices for shipping to your delivery address.

What concrete/thickness should it be to set up a two-post lift?

The two-post lift should be anchored in concrete C20/25 DIN1045:2001-D7, double-reinforced with an expansion of at least 4000 x 2000 x 200 mm.

 Delivery time?

Max 15 working days.

Do you have used or demo copies?

No!

When will my delivery arrive?

Within 15 working days. If you need a more specific answer than that, you can always contact our support.
